Description
SPECIFICATIONS
Applicable Bicycle: Road Bicycles
Braking System: Disc Brake
Brand Name: ROCKBROS
Installation tire width: Recommended tire width 25c~28c
Model Number: 41210053
Origin: Mainland China
Perrin: S&S Steel ball perrin

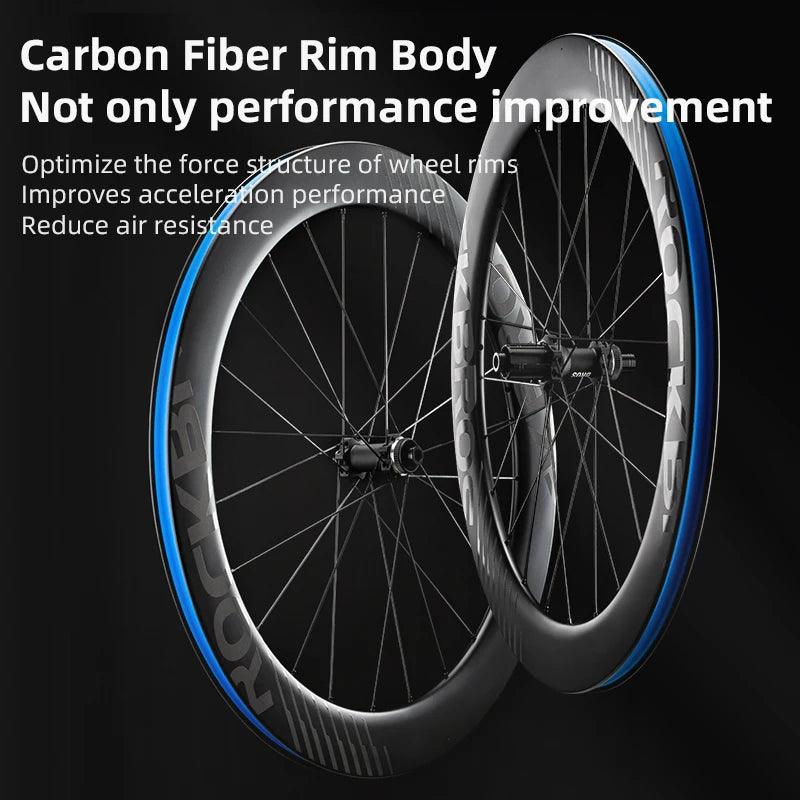

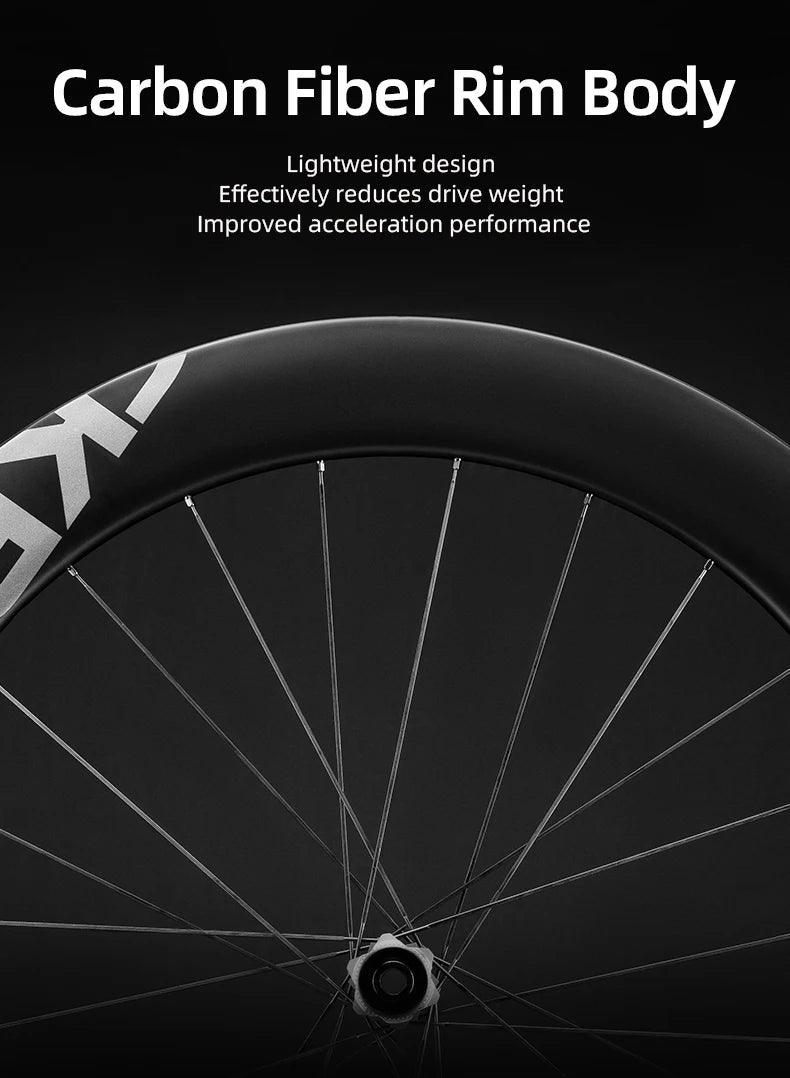

Rim Material: T700 Carbon fiber(partial T800)
Size: 700c
Spoke Hole: 20 - 24H
Spoke Type: Stainless steel
Tyre Type: Clincher & Tubeless

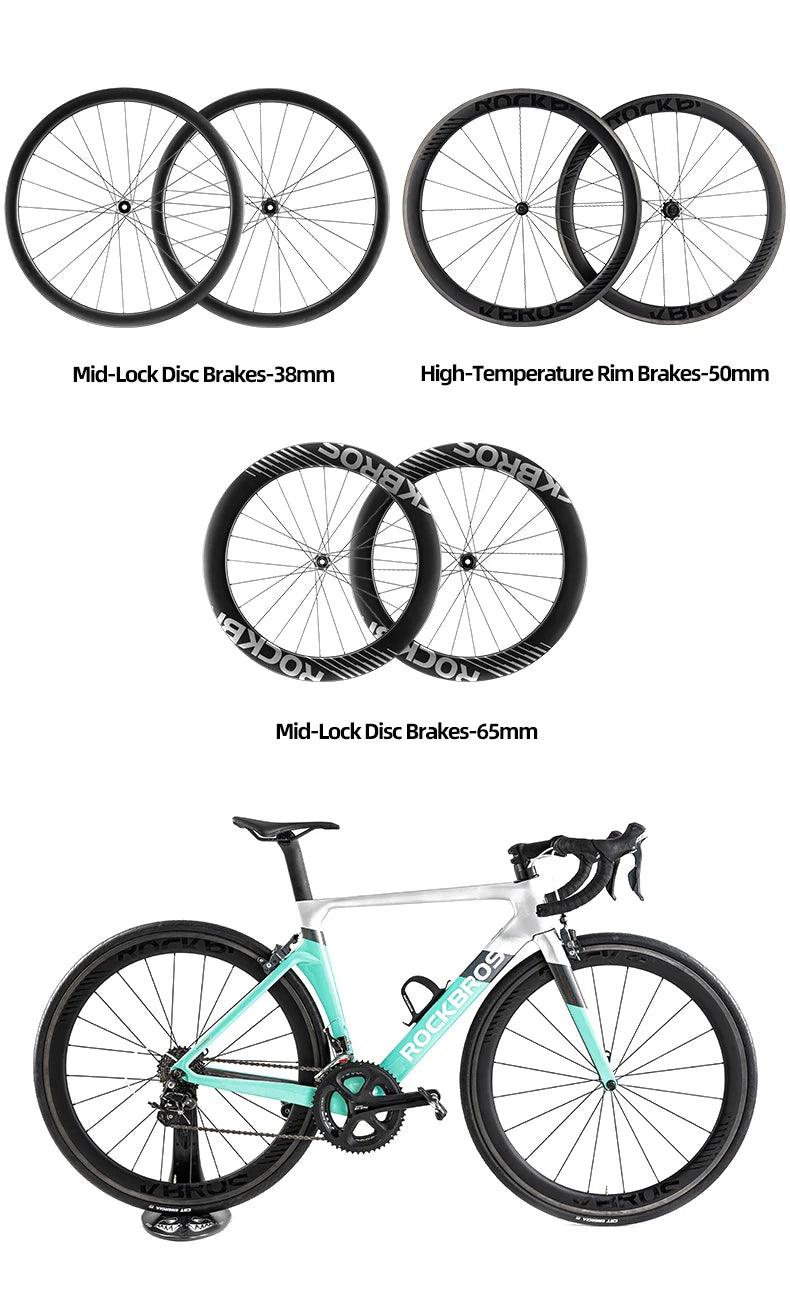

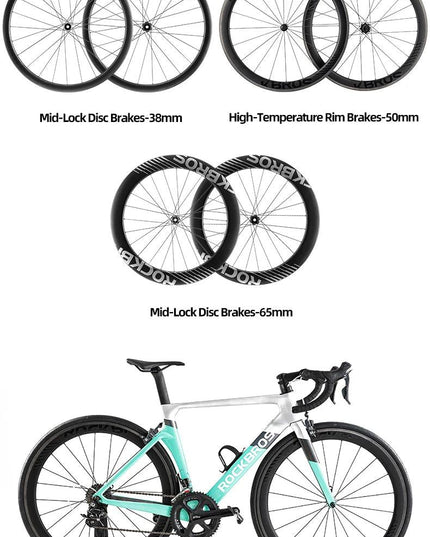

Wheel Depth: 65mm/50mm/38mm Wheel Bikes
Wheel Material: CARBON
EU COUNTRIES VAT
This is an important notice only for customers in EU countries:
The price displayed on AliExpress includes VAT tax,
but the actual payment does not need to pay VAT tax.
Calculation method of actual paid price:
The actual price paid = display price/(1+VAT rate)
Take 38mm depth 25mm as an example:
Spain's VAT rate is 21%, and the displayed price of 38mm depth 25mm is US$430.46
The actual paid price = 430.46/(1+21%), and the actual paid price is US$355.75.
Please rest assured to place an order, and any questions please contact us.
Kindly note:
If need to use “seller's shipping method”,
please tell us your zip code first, we need to confirm whether it is in a remote area.
If it’s a remote area, it needs to pay Extended Area Surcharge $50.
WEIGHT:This weight only suitable for UD weave.
38MM*26MM: clincher/tubeless: 1550±40g
50MM*26MM: clincher/tubeless: 1550±40g
65MM*26MM: clincher/tubeless: 1750±40g

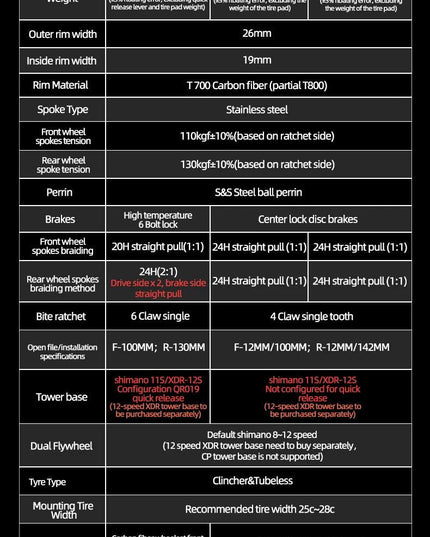

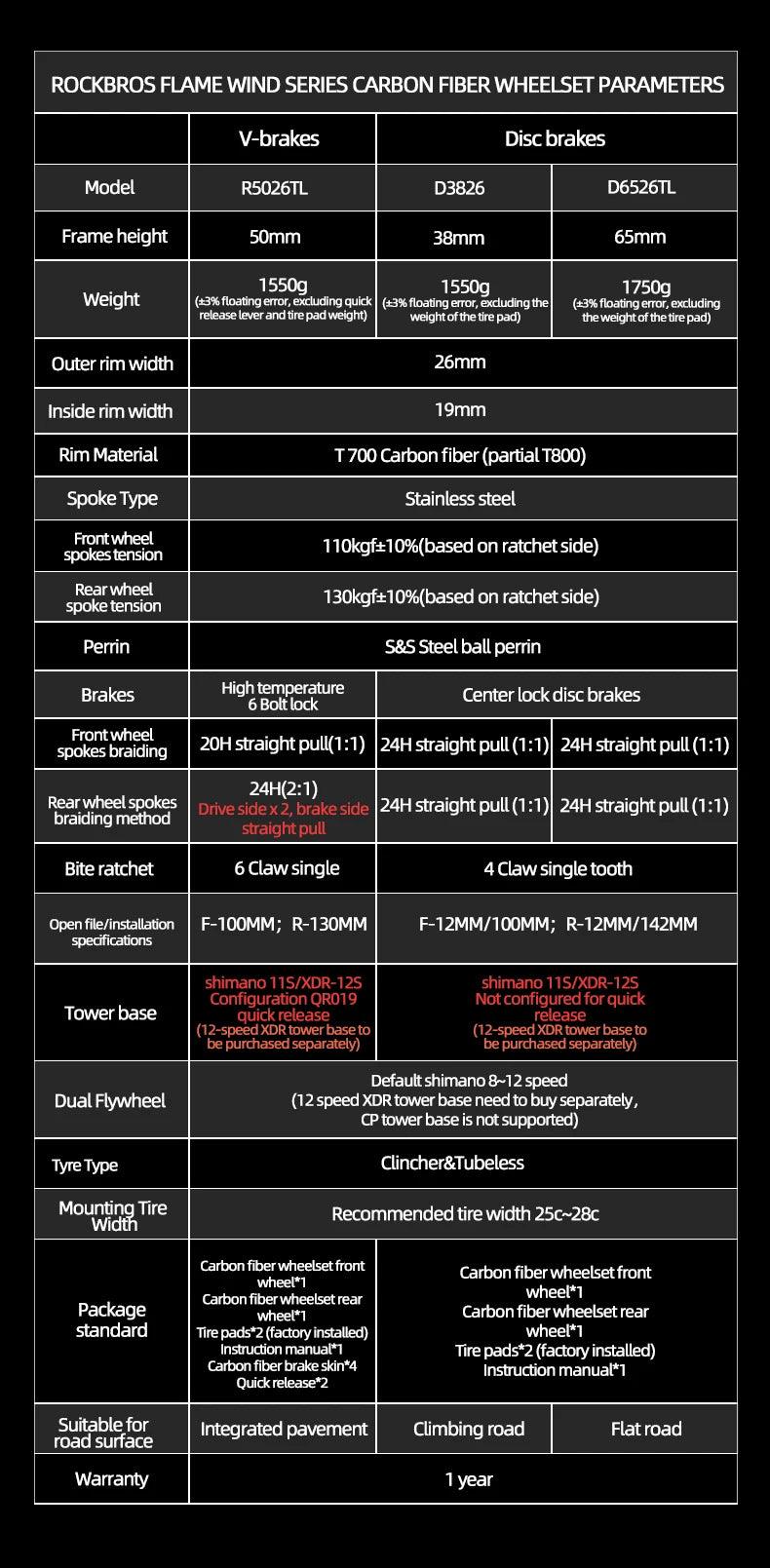

Product Detail

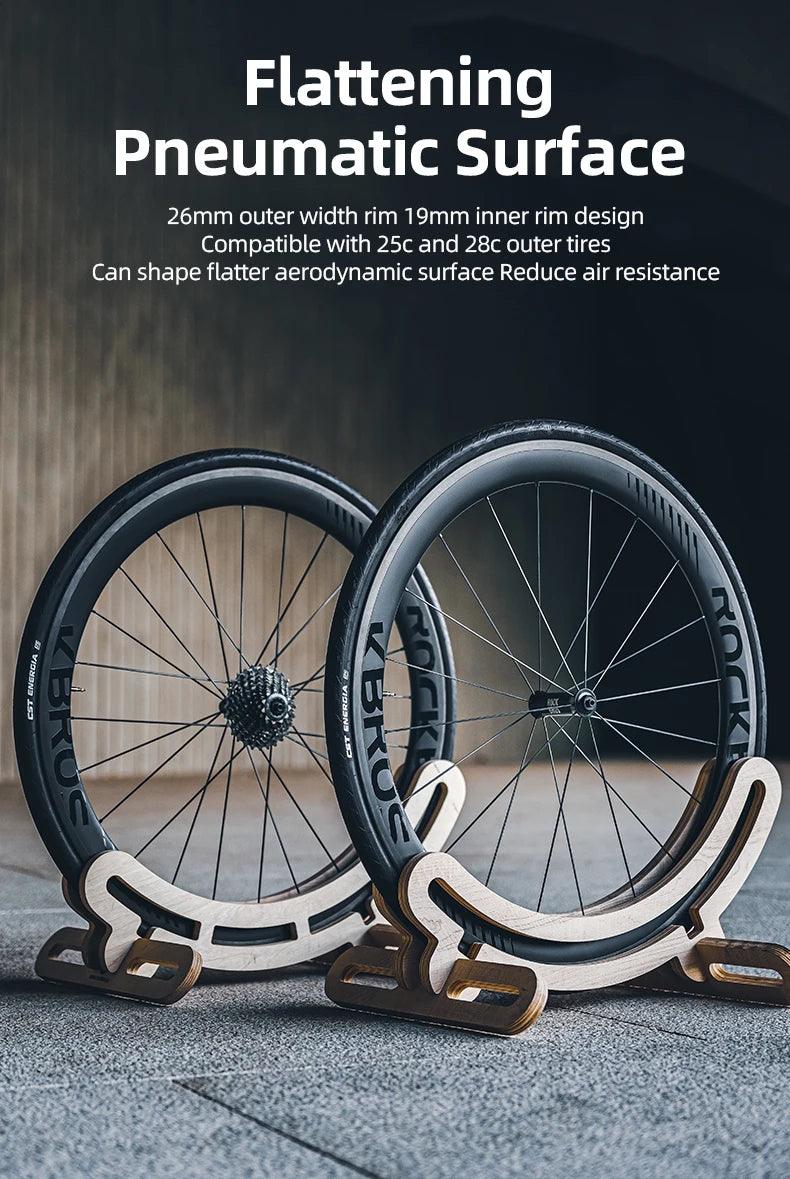

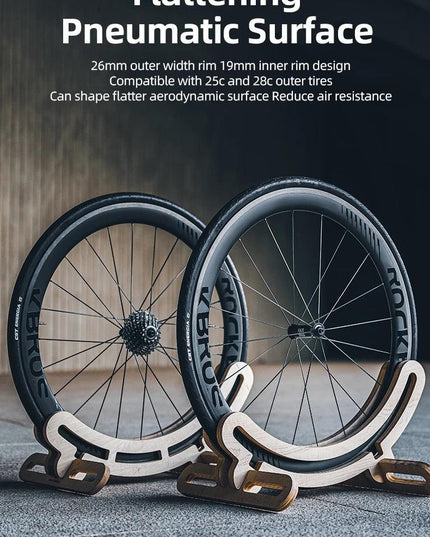

Outer width of rim: 26mm
Inner width of the rim: 19mm

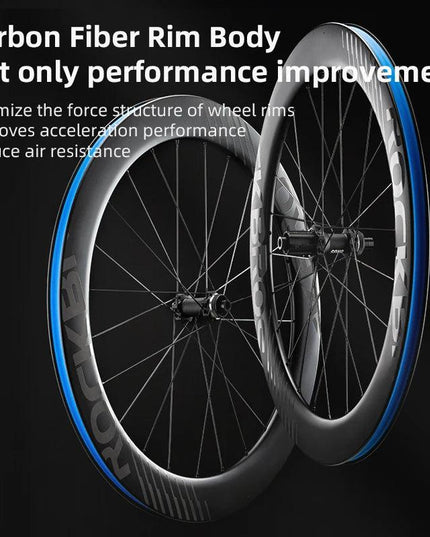

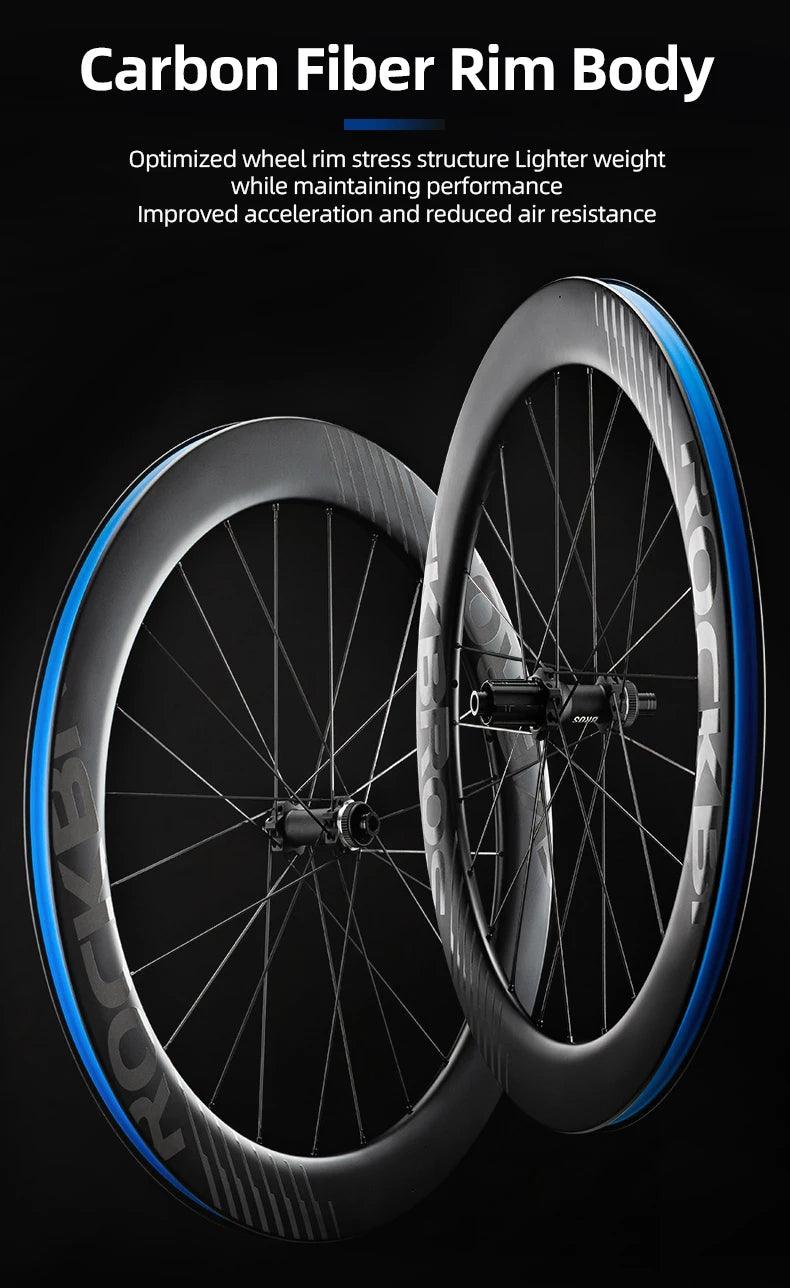

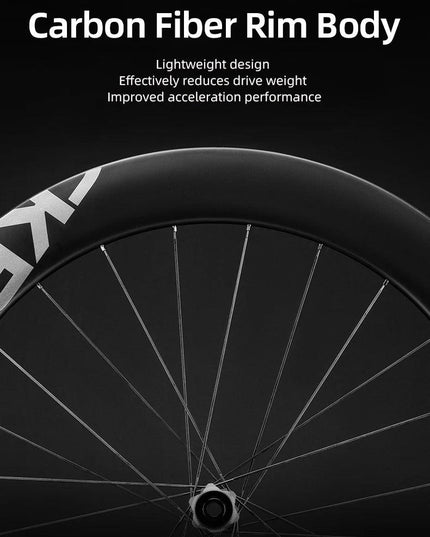

Rim material: T700 carbon fiber (partial T800)
Spoke type: Stainless steel
Front wheel spoke tension: 110kgf±10% (subject to ratchet edge)
Rear wheel spoke tension: 130kgf±10% (subject to ratchet edge)
Peilin: S&S Steel Ball Peilin
Taking into account the flywheel: the default shimano 8~12 speed (12 speed XDR tower base needs to be purchased separately, CP tower base is not supported)
Tire compatibility:Clincher&Tubeless
Installation tire width: recommended tire width 25c~28c
Warranty: 1 year
Model: R5026TL-41210053002
Frame height: 50mm
Weight: 1550g (±3% floating error, excluding quick release rod and tire pad weight)

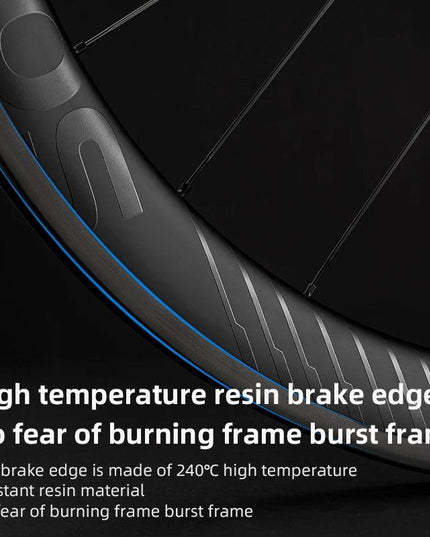

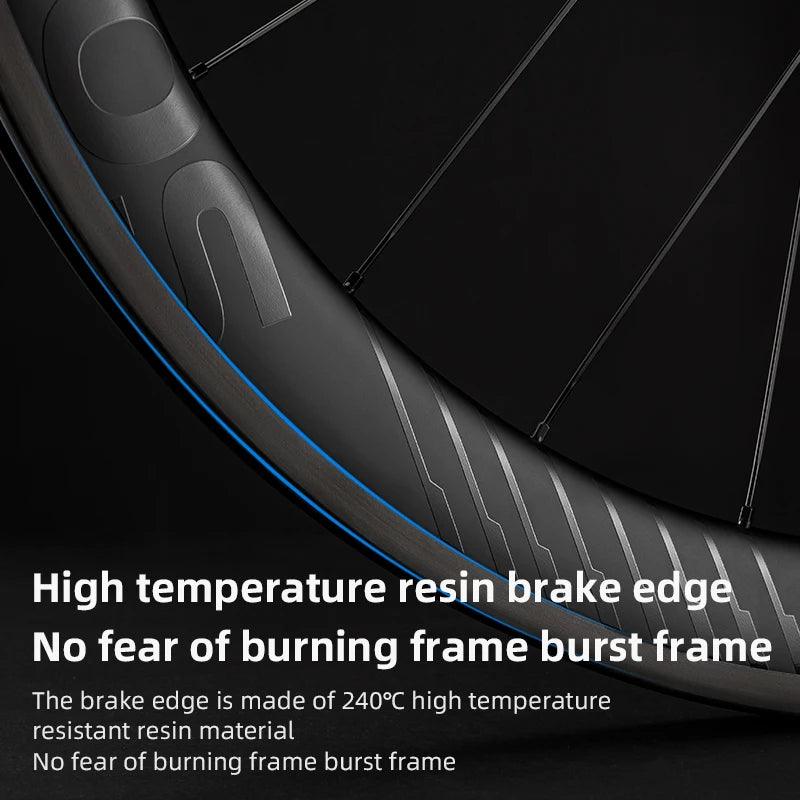

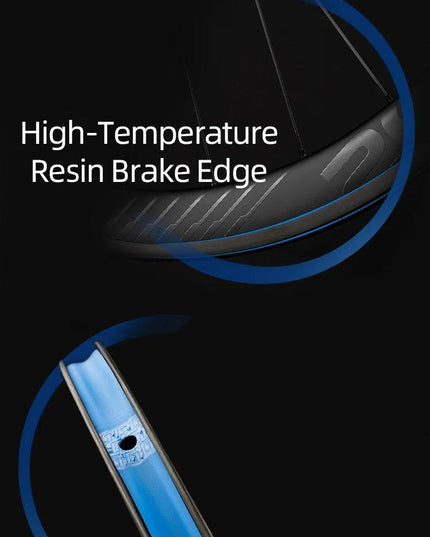

Brake: High temperature ring brake
Front wheel spoke knitting method: 20H straight pull (1:1)

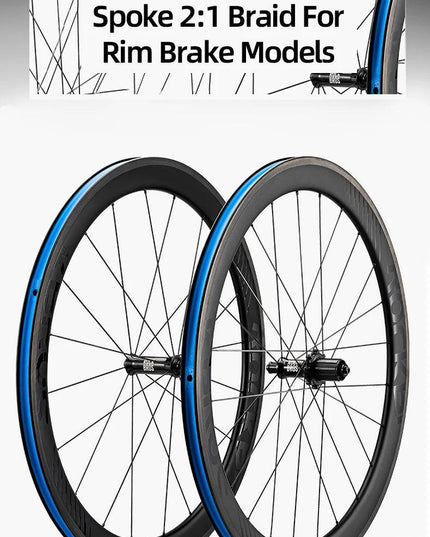

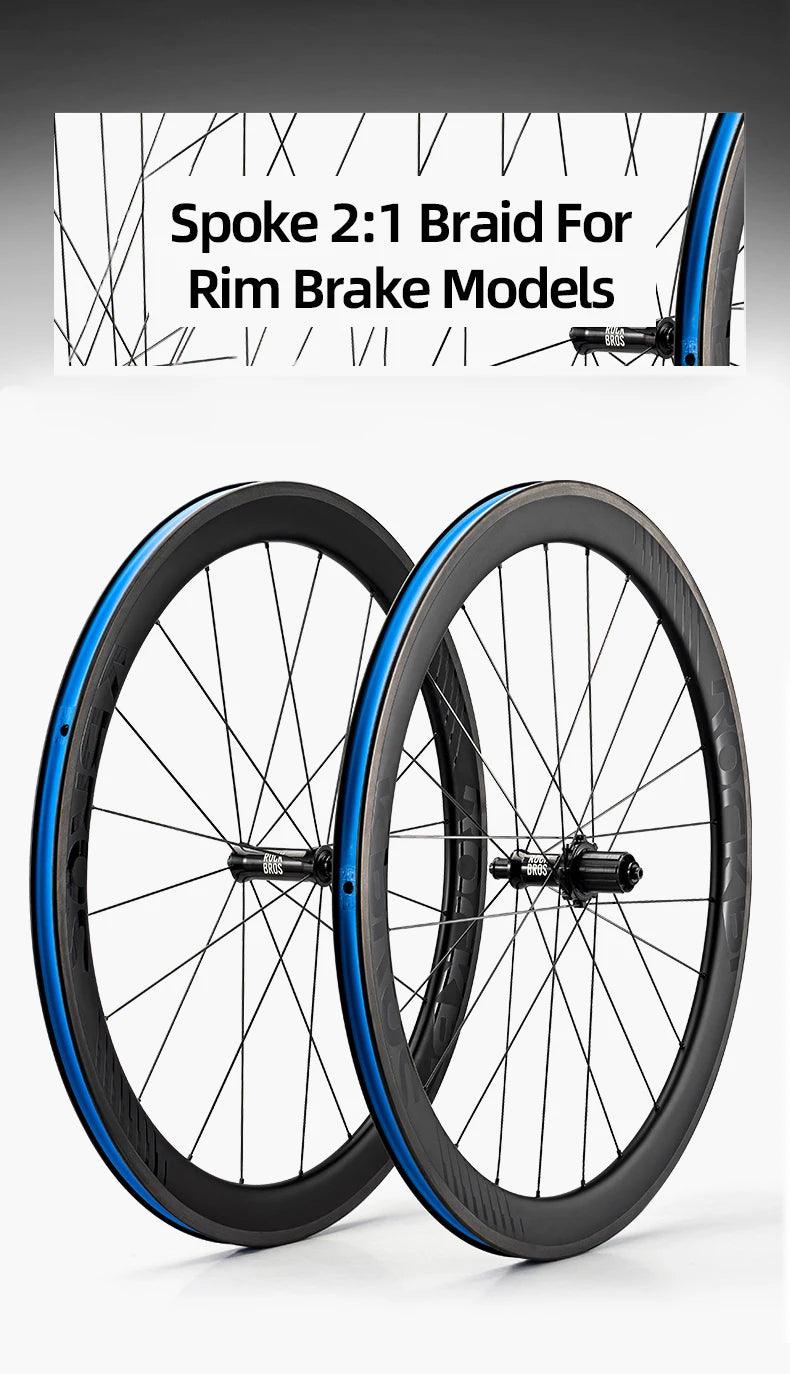

Rear wheel spoke arrangement method: 24H (2:1) drive side×2, brake side straight pull

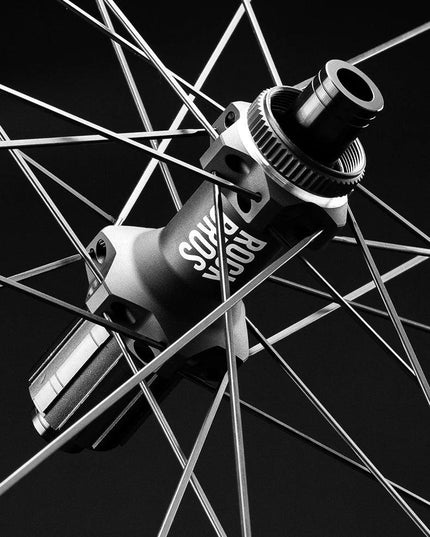

Bite ratchet: 6 claws and single teeth
Opening/installation specifications: F-100MM; R-130MM

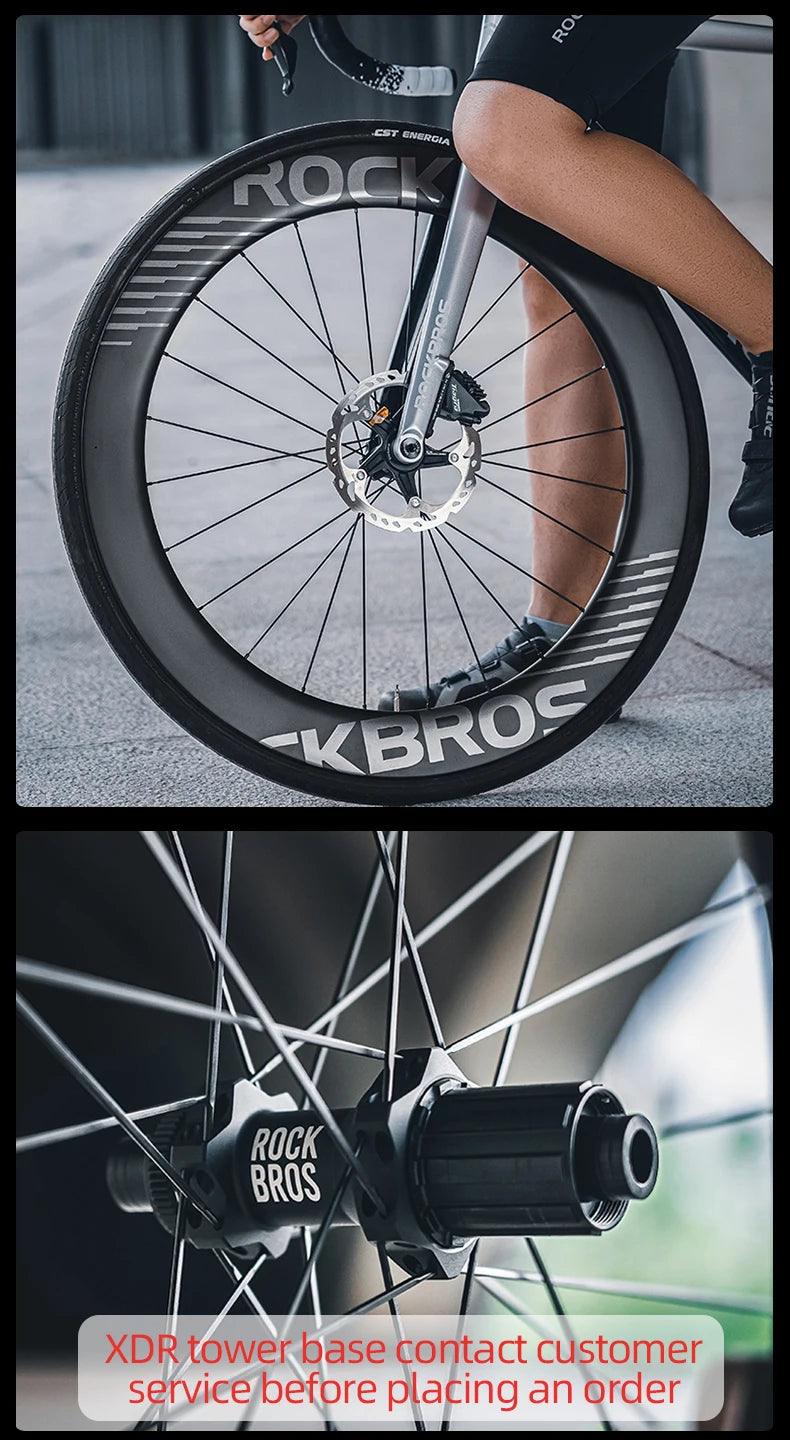

Tower base: shimano 11S/XDR-12S, equipped with QR019 quick release (12-speed XDR tower base needs to be purchased separately)
Suitable for pavement: comprehensive pavement
Packaging standard configuration:
carbon fiber wheel set, front wheel*1
Carbon fiber wheel set rear wheel*1

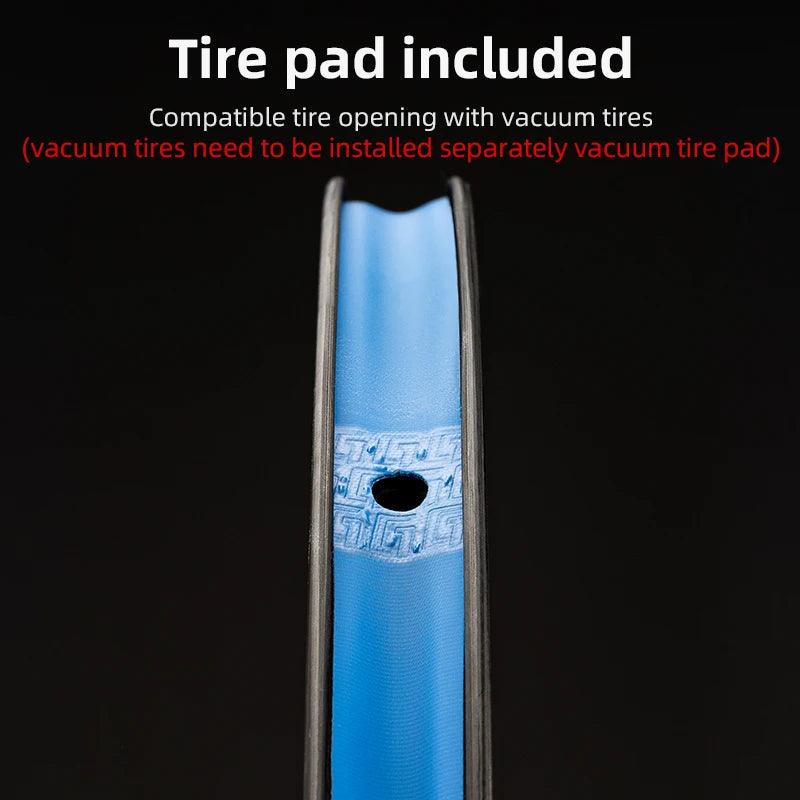

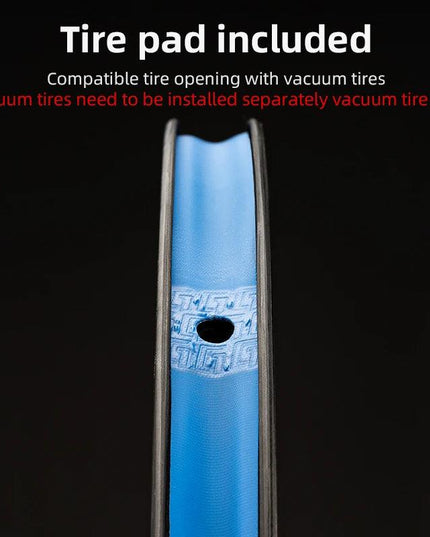

Tire pad*2 (factory installed)
Instruction manual*1
Carbon fiber special brake leather*4

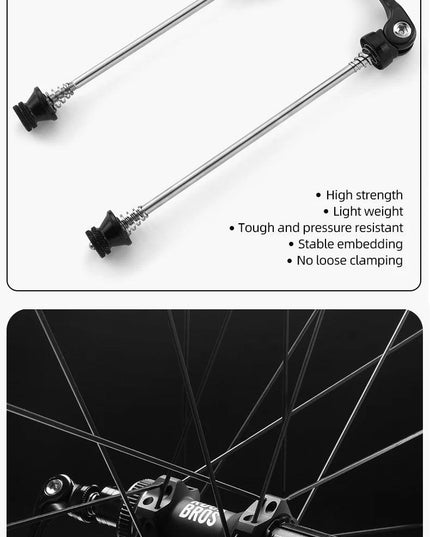

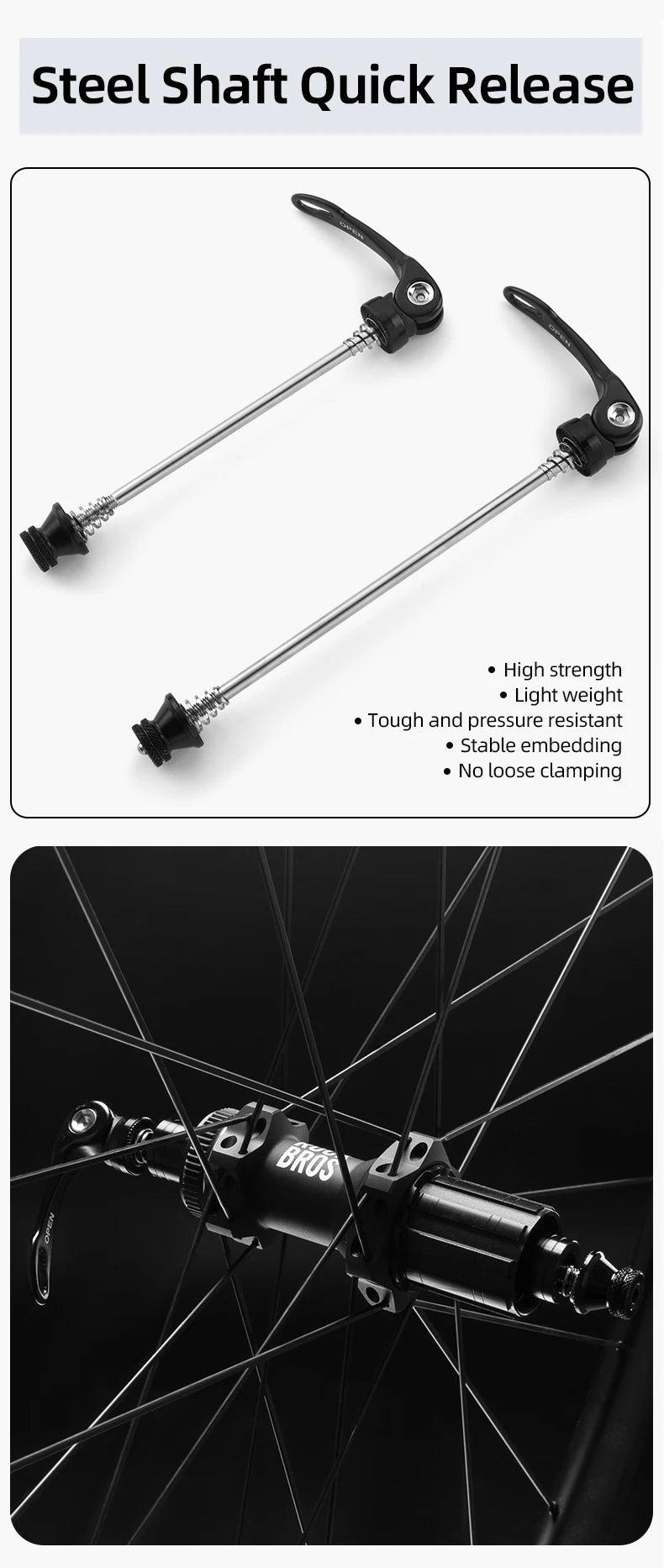

Quick release*2

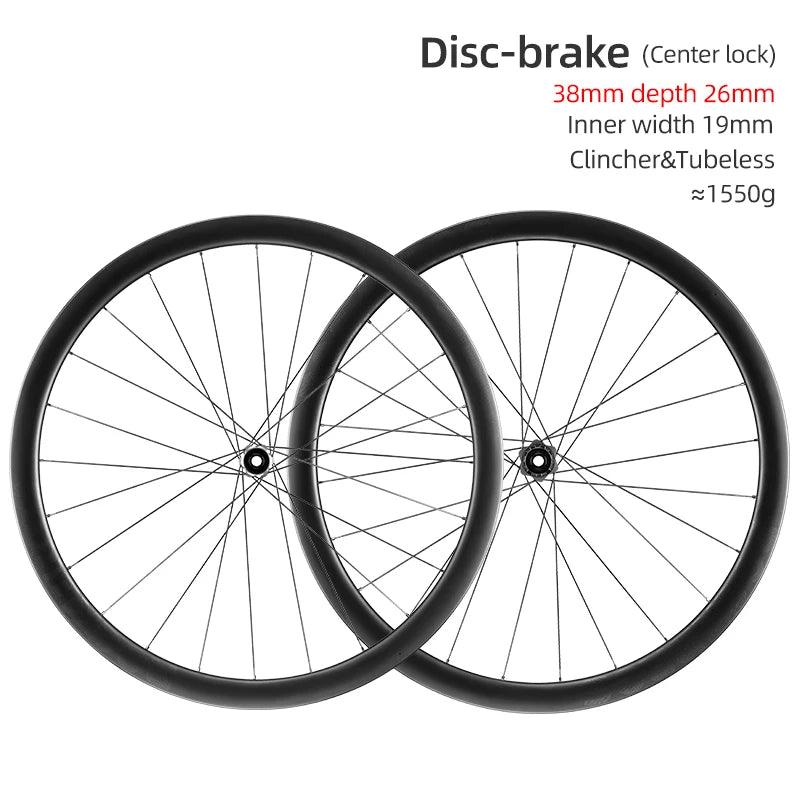

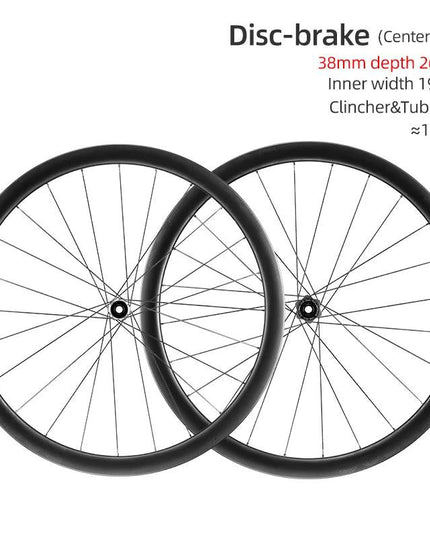

Model: D3826-41210053001
Frame height: 38mm
Weight: 1550g (±3% floating error, excluding tire pad weight)

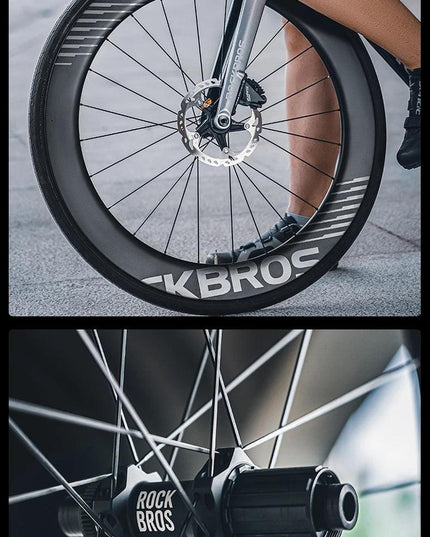

Brake: Mid-lock disc brake
Front wheel spoke knitting method: 24H straight pull (1:1)
Rear wheel spoke arrangement method: 24H straight pull (1:1)
Bite ratchet: 4 claws and single teeth
Opening/installation specifications: F-12MM/100MM; R-12MM/142MM.
Tower base: shimano 11S/XDR-12S, not equipped with quick release (12-speed XDR tower base needs to be purchased separately)
Suitable for road surface: climbing road surface
Packaging standard configuration:
carbon fiber wheel set, front wheel*1
Carbon fiber wheel set rear wheel*1
Tire pad*2 (factory installed)
Instruction manual*1

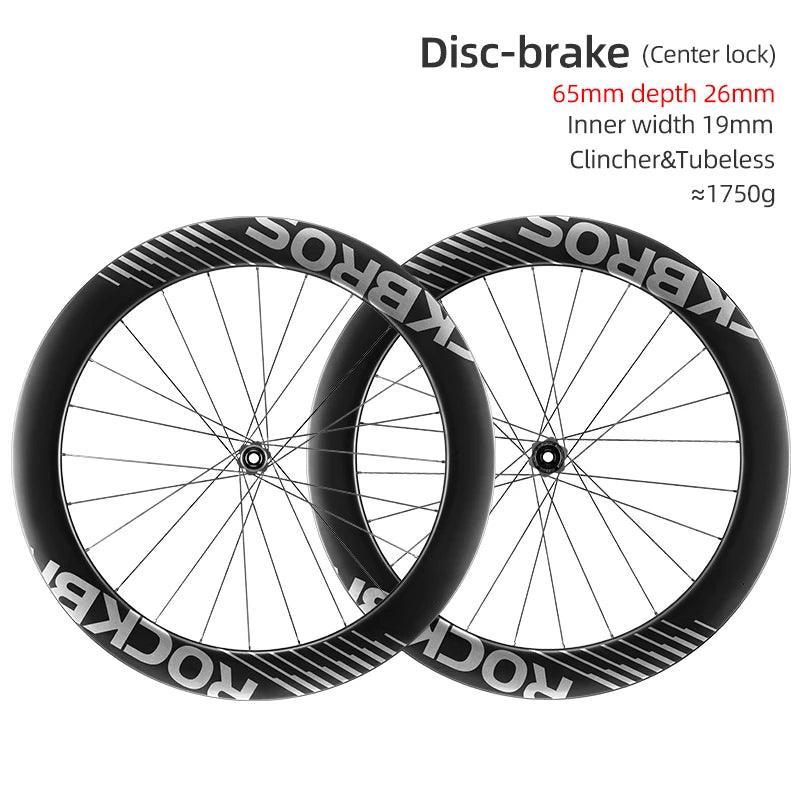

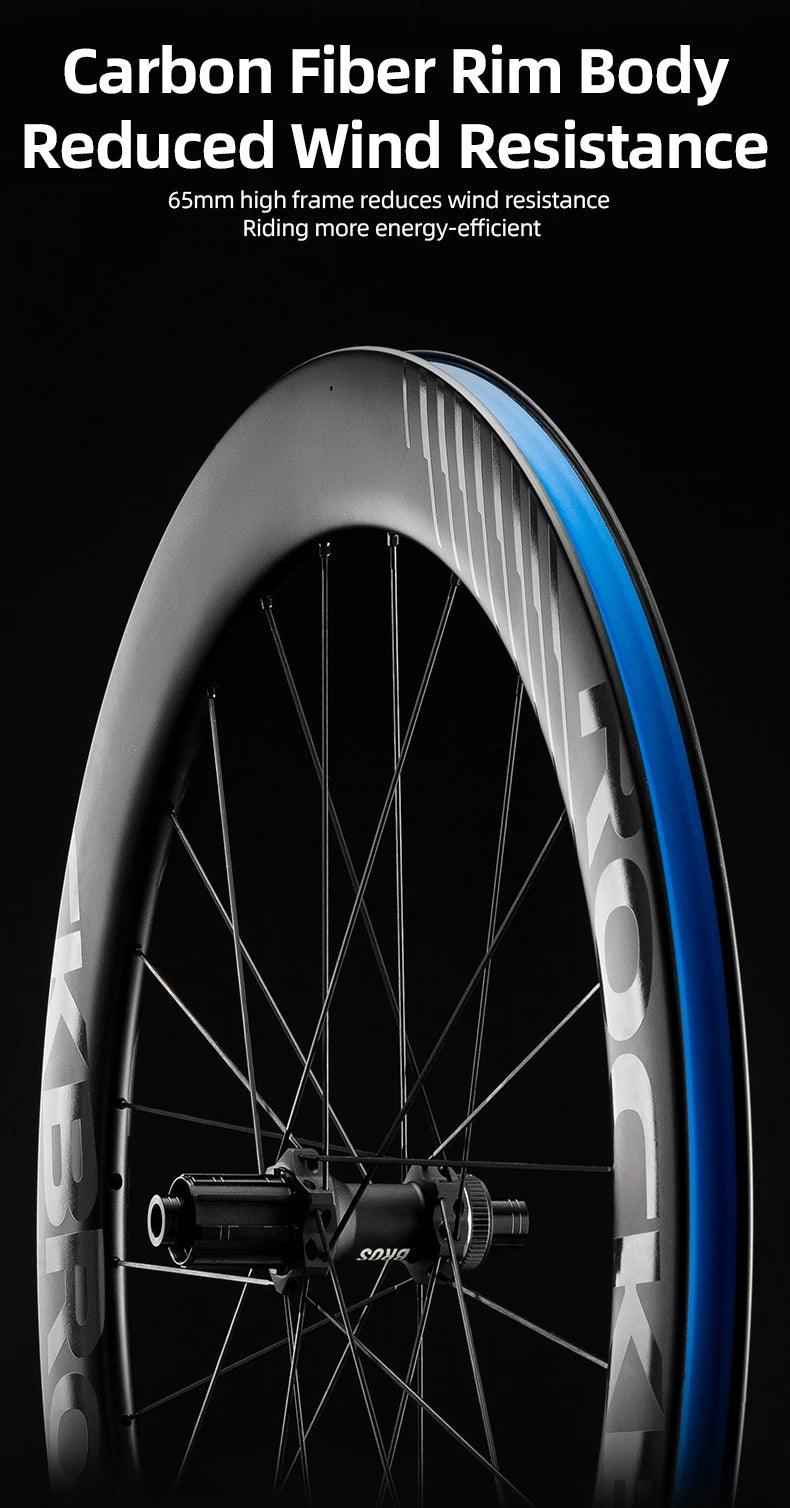

Model: D6526TL-41210053003
Frame height: 65mm
Weight: 1750g (±3% floating error, excluding tire pad weight)
Brake: Mid-lock disc brake
Front wheel spoke knitting method: 24H straight pull (1:1)
Rear wheel spoke arrangement method: 24H straight pull (1:1)
Bite ratchet: 4 claws and single teeth
Opening/installation specifications: F-12MM/100MM; R-12MM/142MM.
Tower base: shimano 11S/XDR-12S, not equipped with quick release (12-speed XDR tower base needs to be purchased separately)
Suitable for pavement: flat pavement
Packaging standard configuration:
carbon fiber wheel set, front wheel*1
Carbon fiber wheel set rear wheel*1
Tire pad*2 (factory installed)
Instruction manual*1
