Description

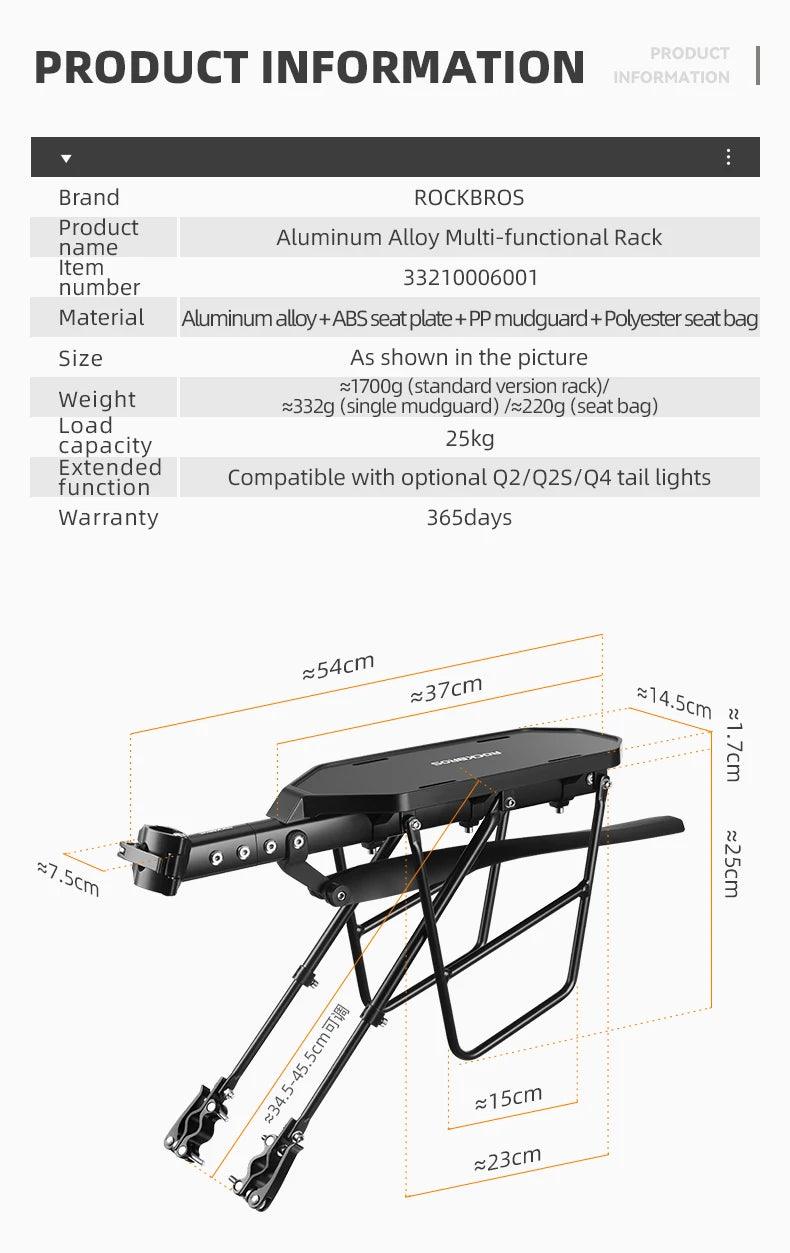

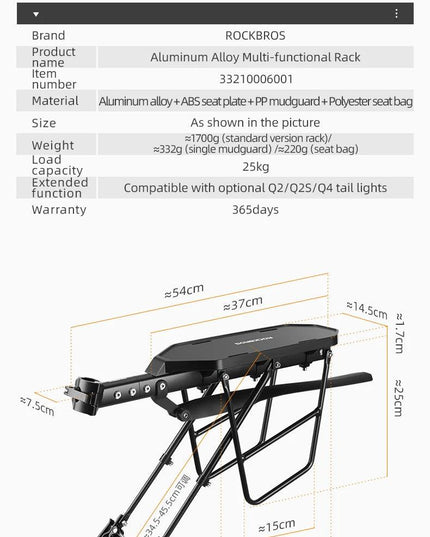

SPECIFICATIONS
Brand Name: ROCKBROS
Capacity (Load): 25kg
Material: Alloy
Origin: Mainland China
Type: Cargo Racks
Product detail
Material:Aluminum Alloy + ABS Seat Plate + PP Mudguard + Polyester Seat Bag
Product Net Weight:(Standard version rack)
Load Capacity:(Single mudguard)
Load capacity: 25kg
Compatible with optional Q2/Q2S/Q4 tail lights
Product feature
Wide range of mudguard adjustment

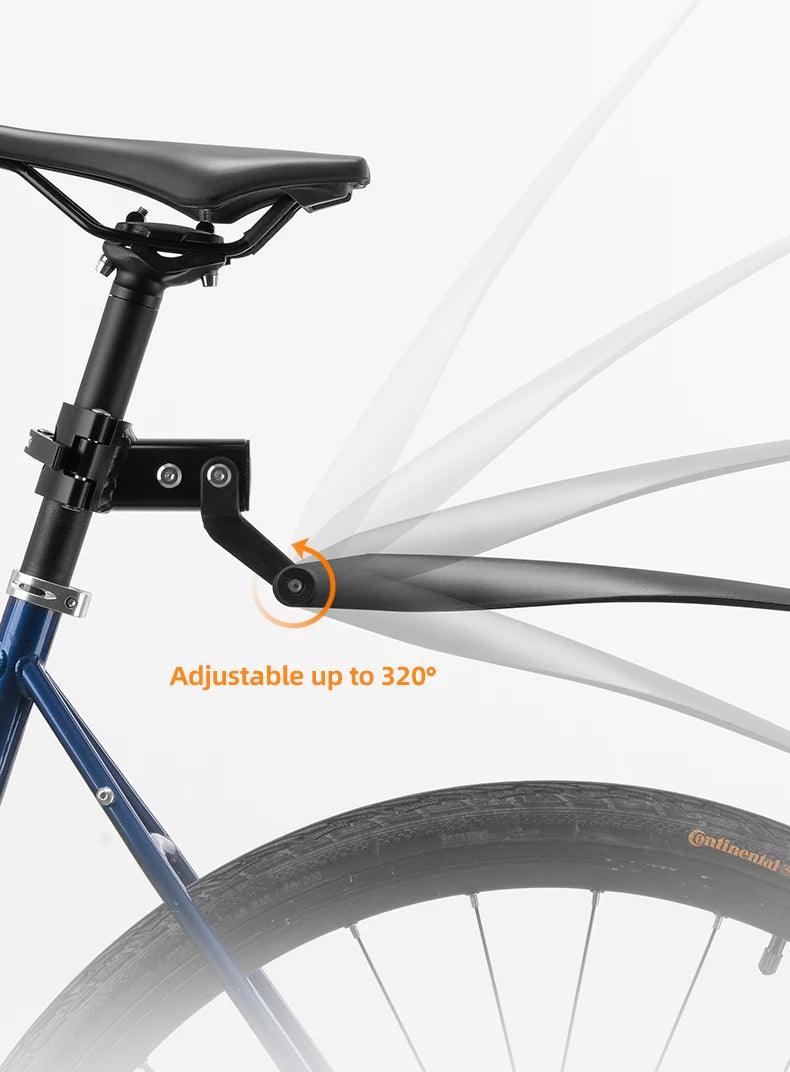

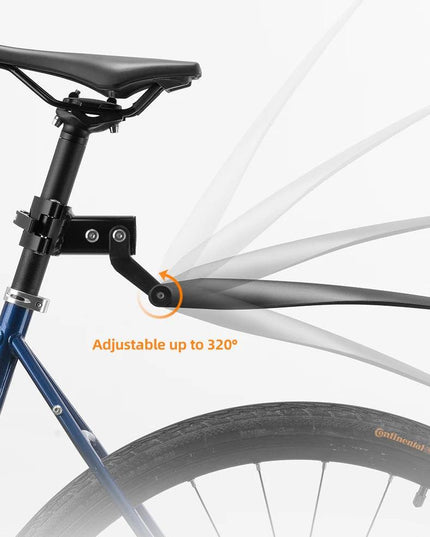

Adjustable up to 320°
Compatible with Tail Light
Dual-sided Protection
Leg protection
Anti-scratch
Detachable
High applicability
Stable structure

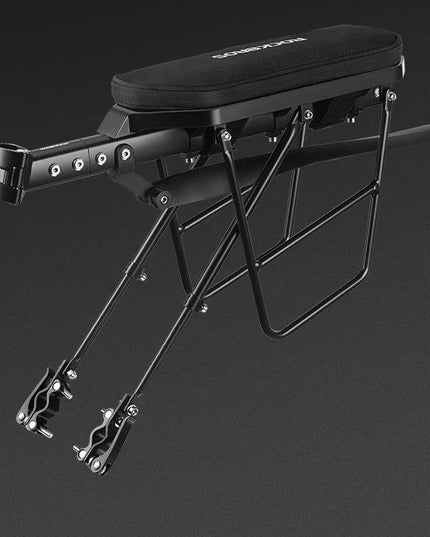

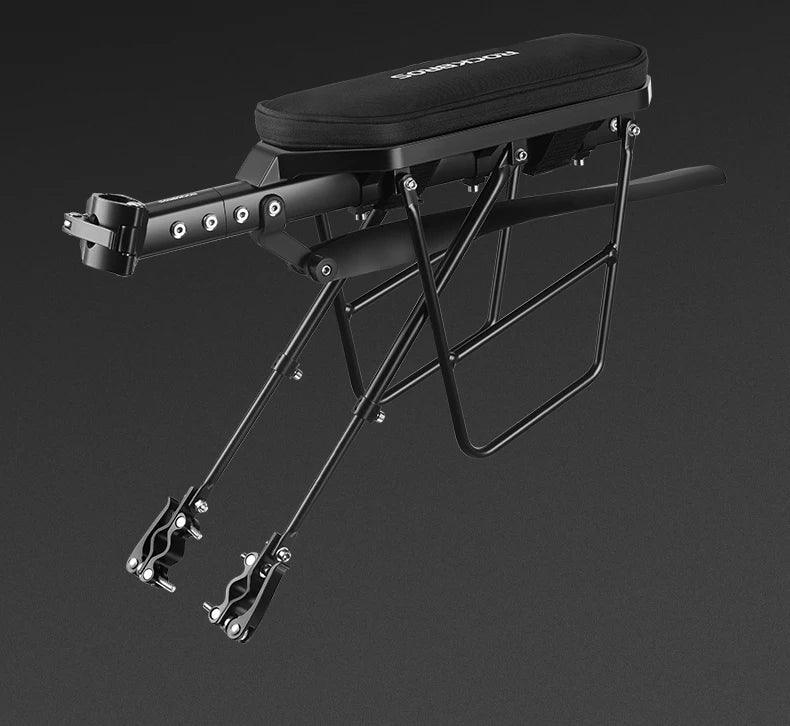

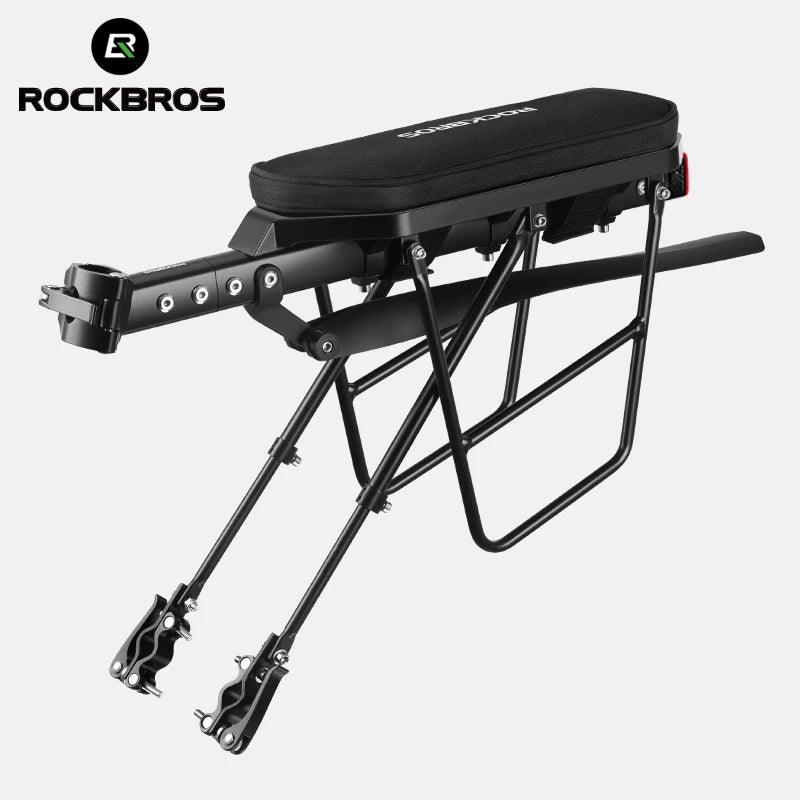

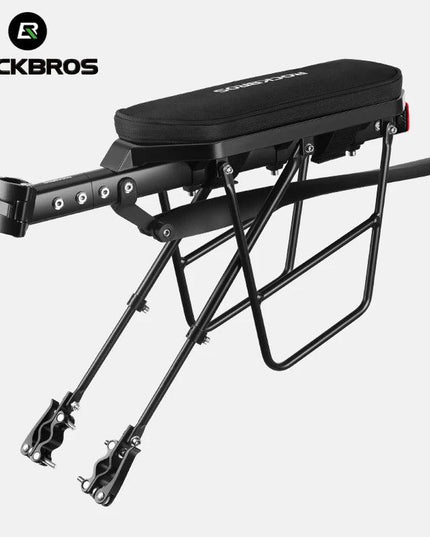

Upgraded Multi-functional Aluminum Alloy Quick Release Rack
Built-in Mudguard/Compatible with Tail Light/Expandable Seat Bag
Stable Load-bearing Support, Resolves Mud Stains, Ensures Night Riding Safety
High-strength Aluminum Alloy
Tested Load-bearing, Strong and Stable
Upgraded aluminum alloy main structure, stronger and less prone to deformation

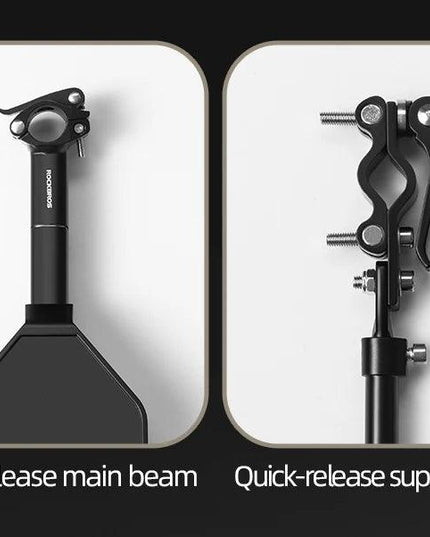

Convenient Installation

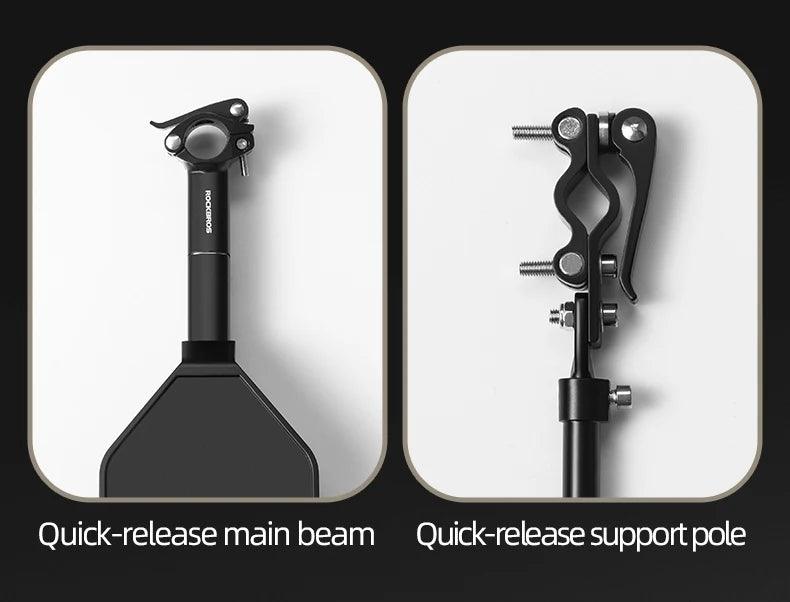

Quick-release design, versatile without drilling
Compatible with most bicycles on the market

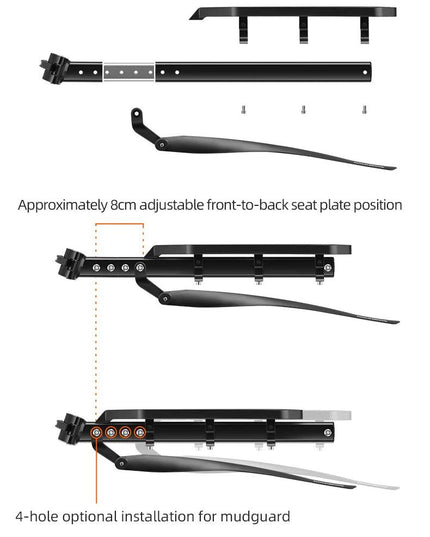

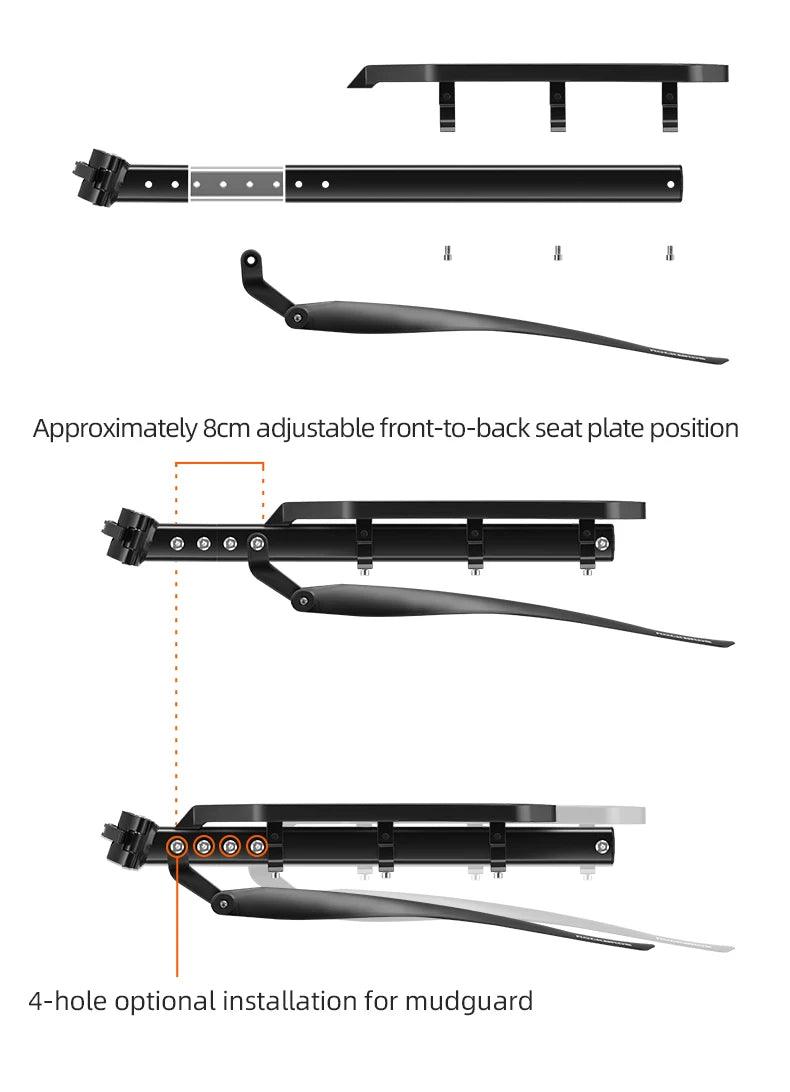

Compatible and adjustable

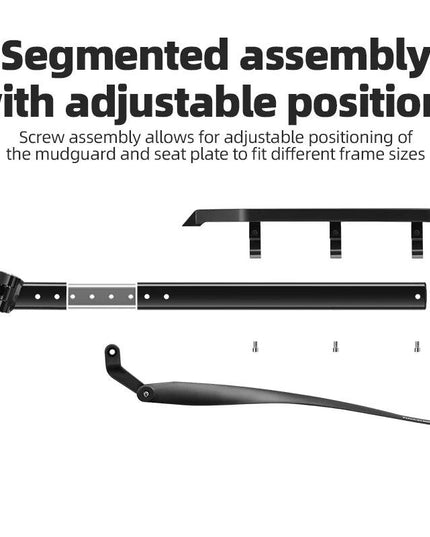

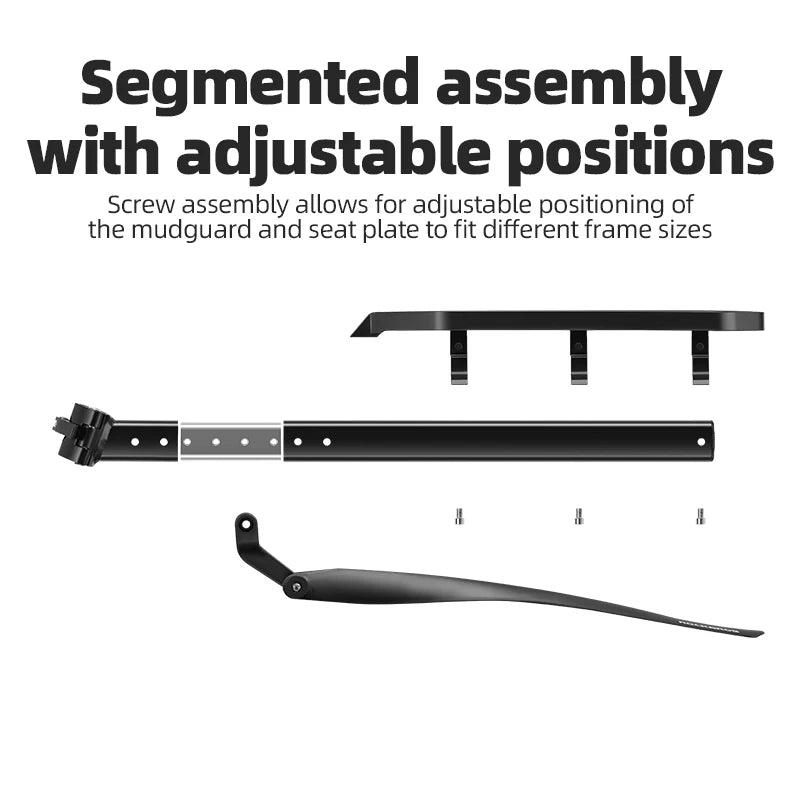

Segmented assembly with adjustable positions
Screw assembly allows for adjustable positioning of the mudguard and seat plate to fit different frame sizes

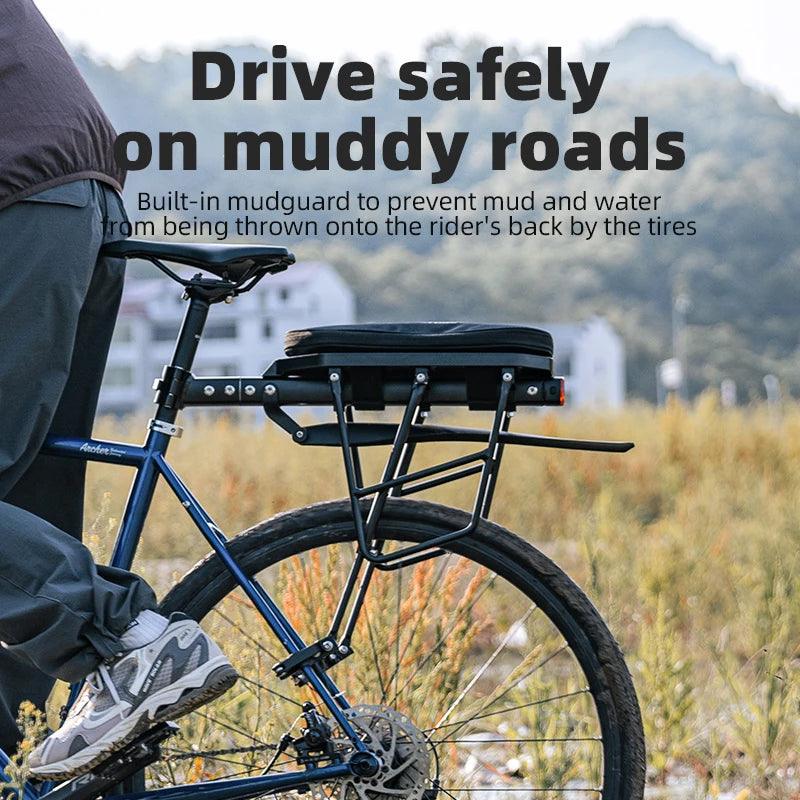

Built-in mudguard

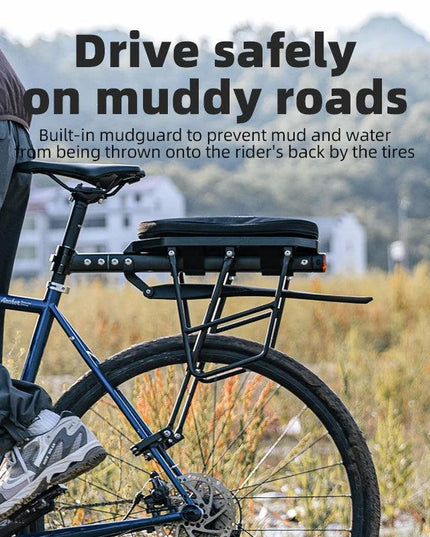

Drive safely on muddy roads
Built-in mudguard to prevent mud and water from being thrown onto the rider's back by the tires
More Options

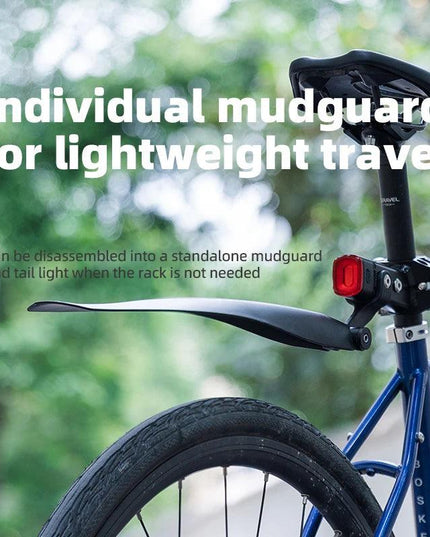

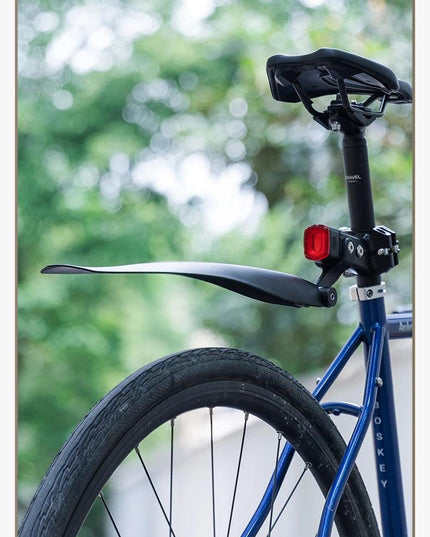

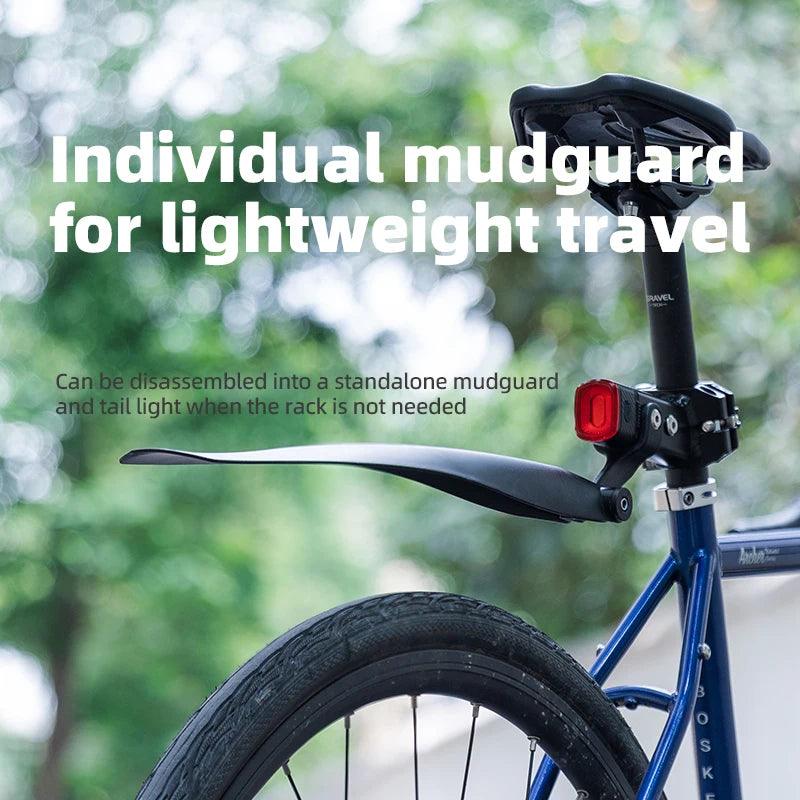

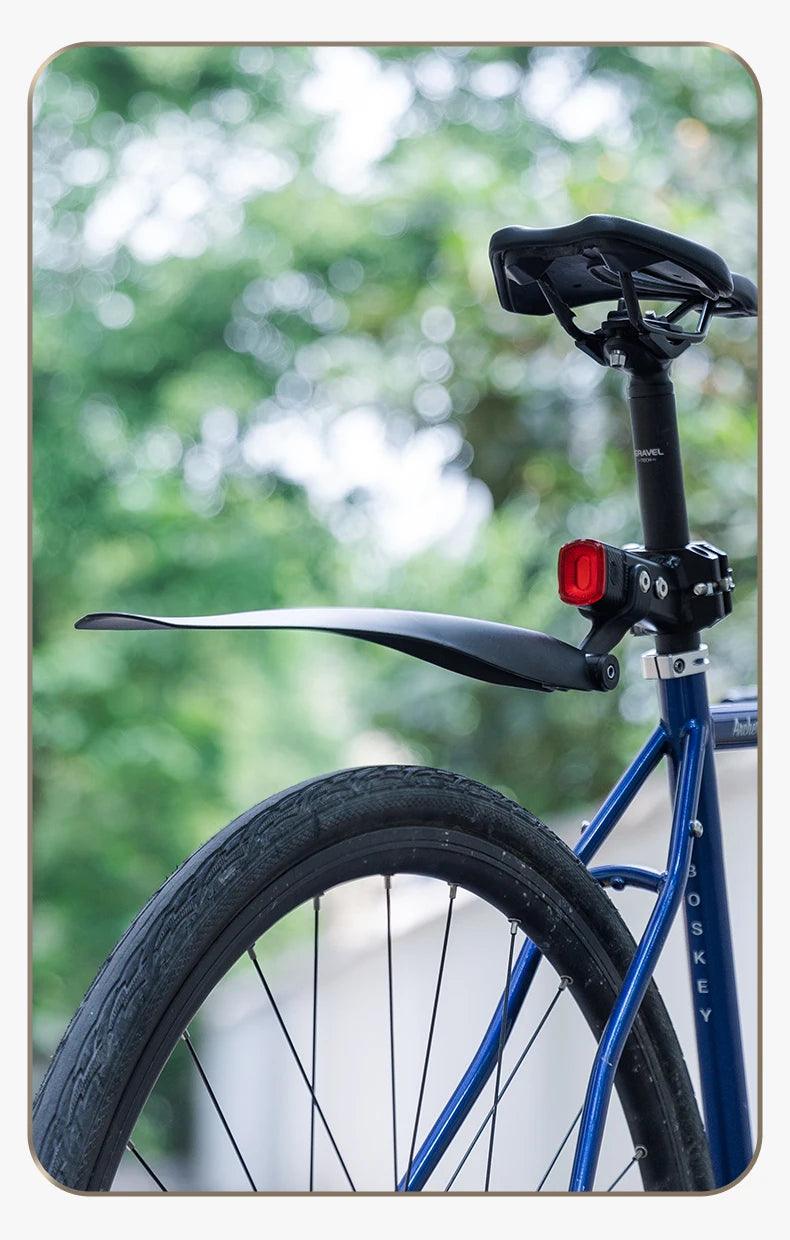

Individual mudguard for lightweight travel
If you want to travel light, you can choose to install only the mudguard
Rotatable adjustment
Wide range of mudguard adjustment
Adjust the angle of the mudguard as needed

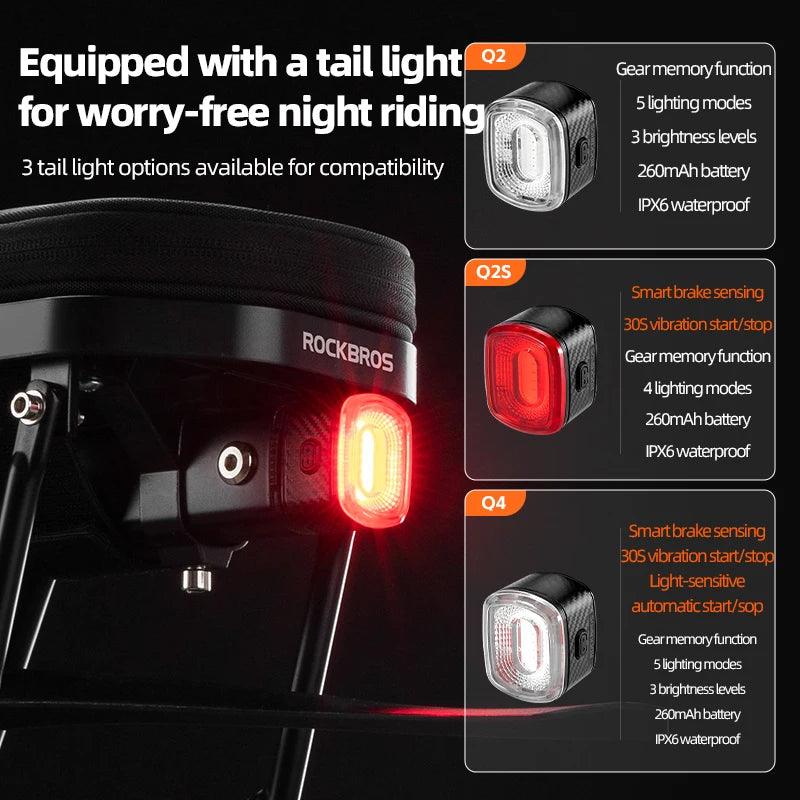

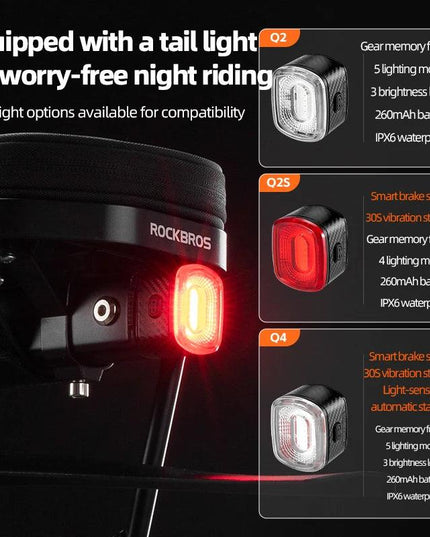

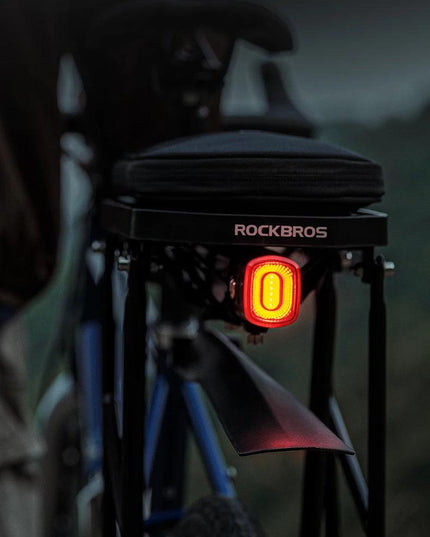

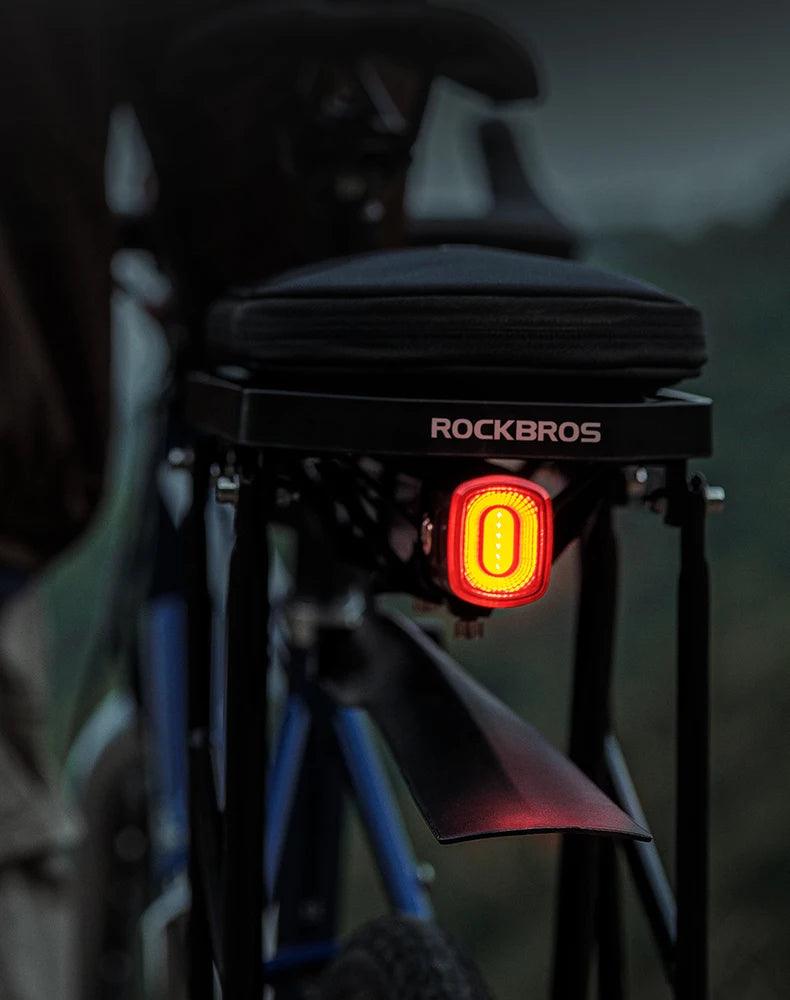

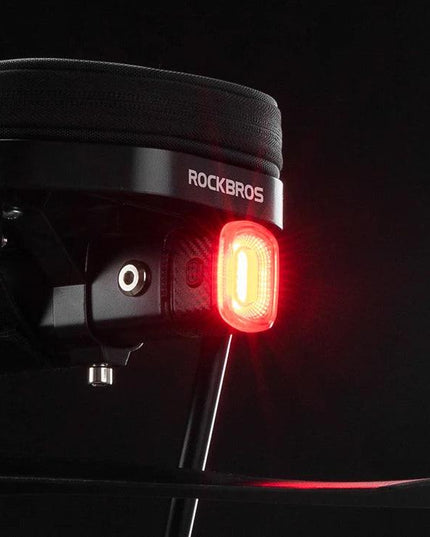

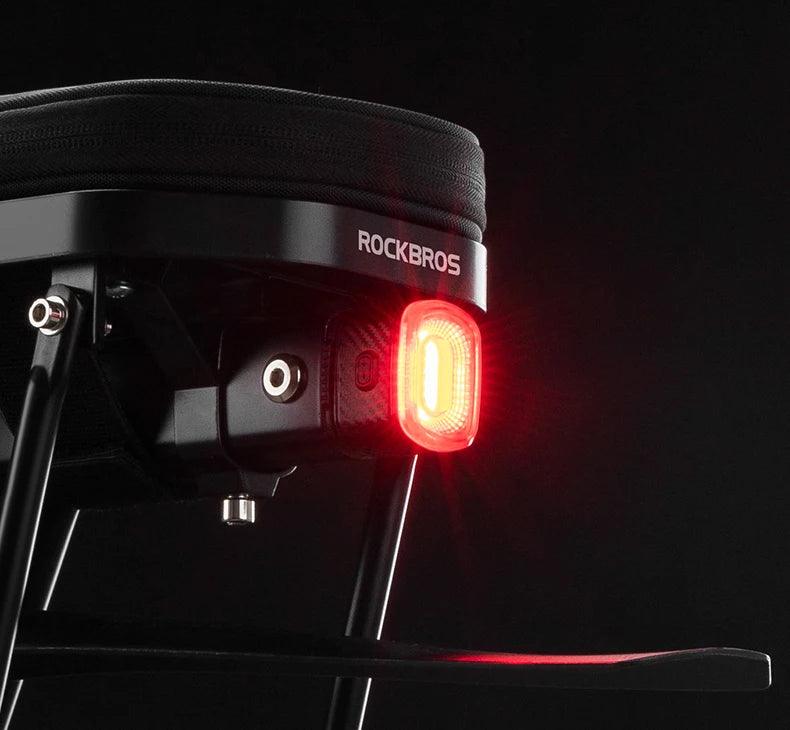

Compatible with Tail Light
Equipped with a tail light for worry-free night riding

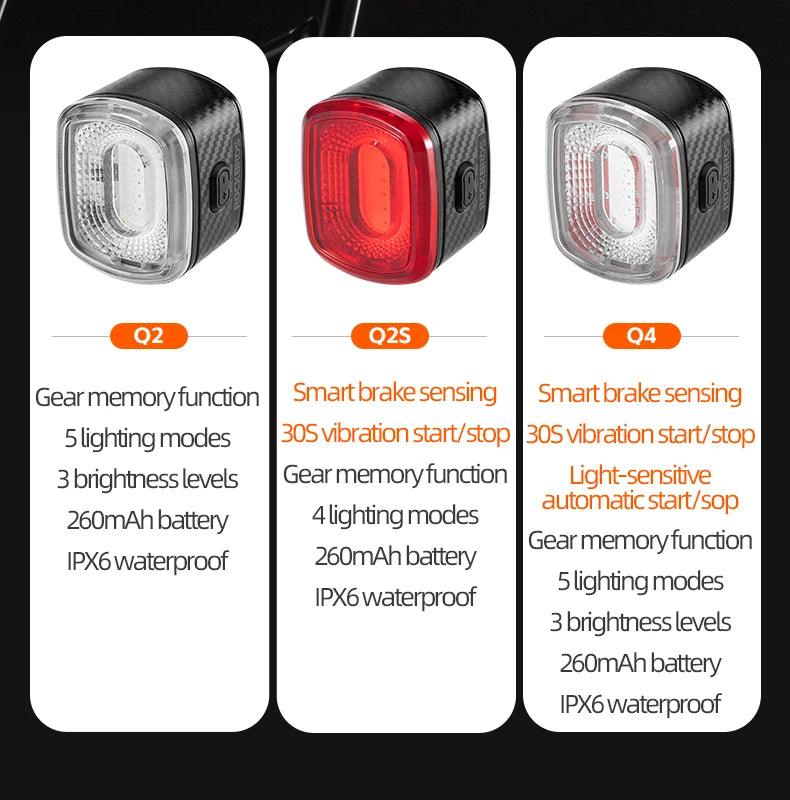

3 tail light options available for compatibility

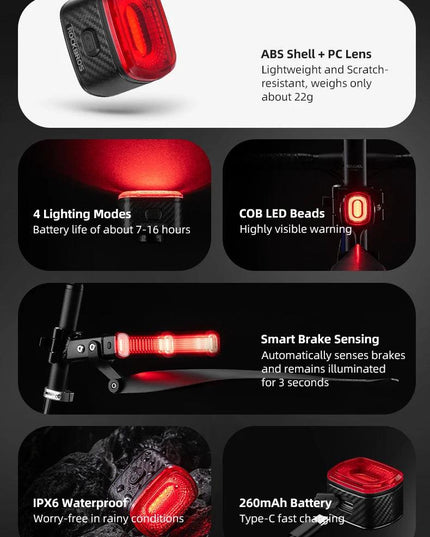

Multi-functional

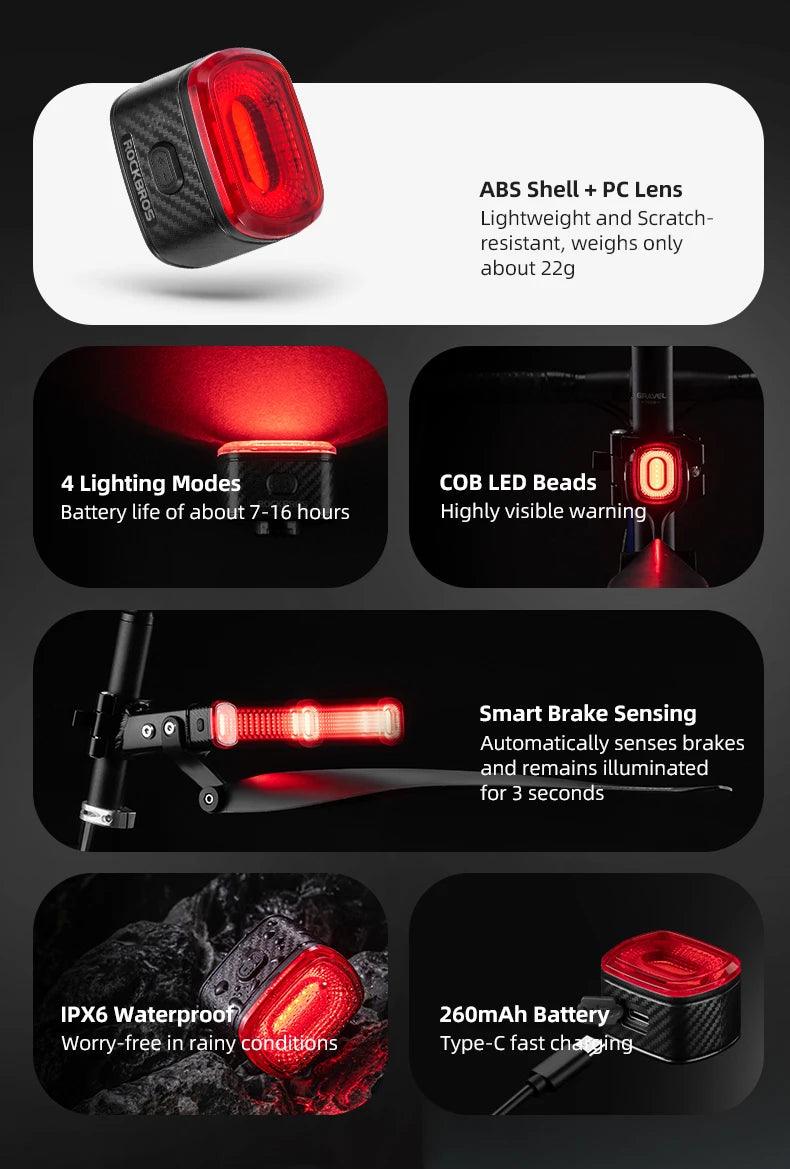

Compact Tail Light with Powerful Functions

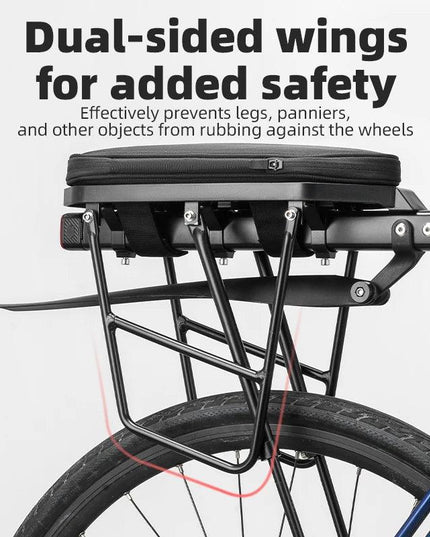

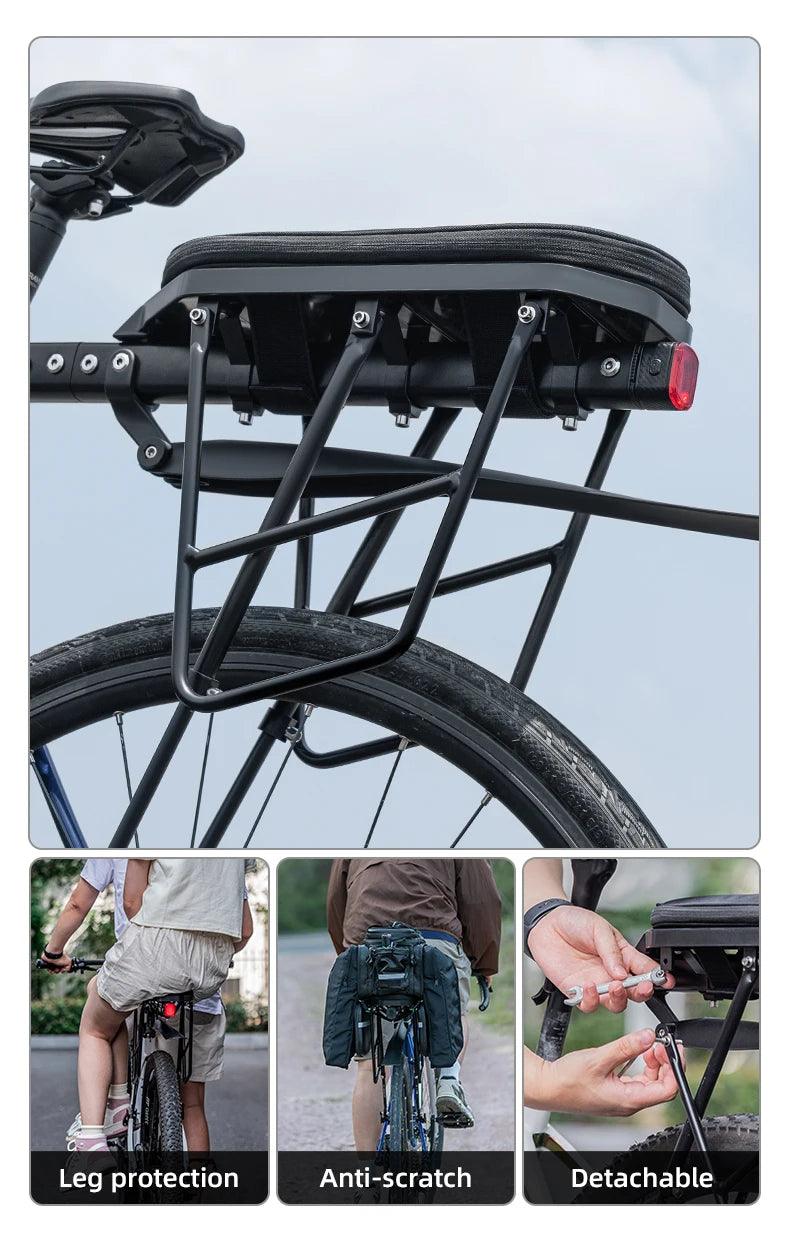

Dual-sided Protection

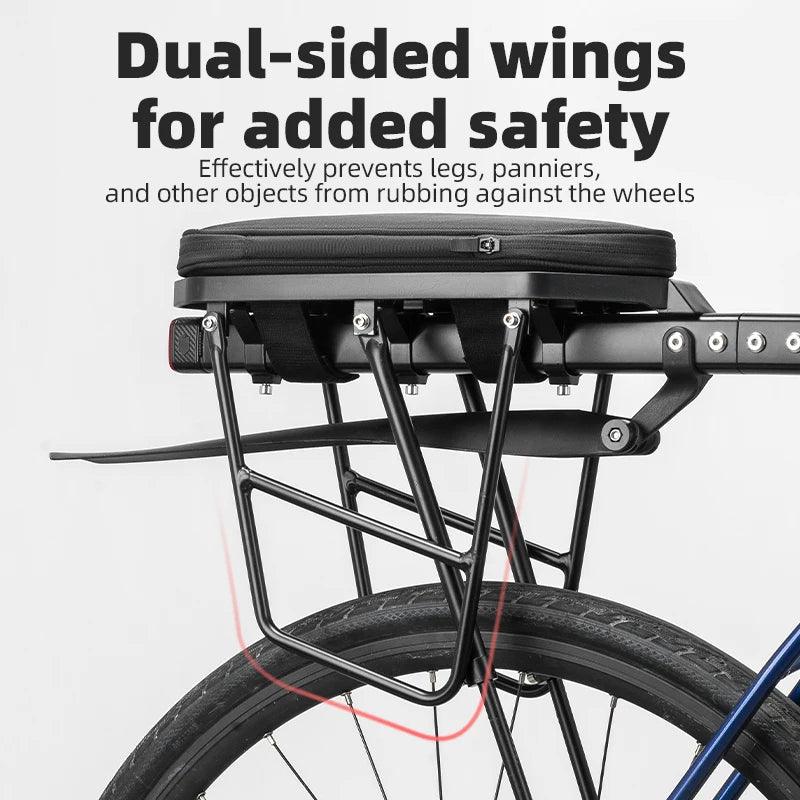

Dual-sided wings for added safety
Effectively prevents legs, panniers, and other objects from rubbing against the wheels

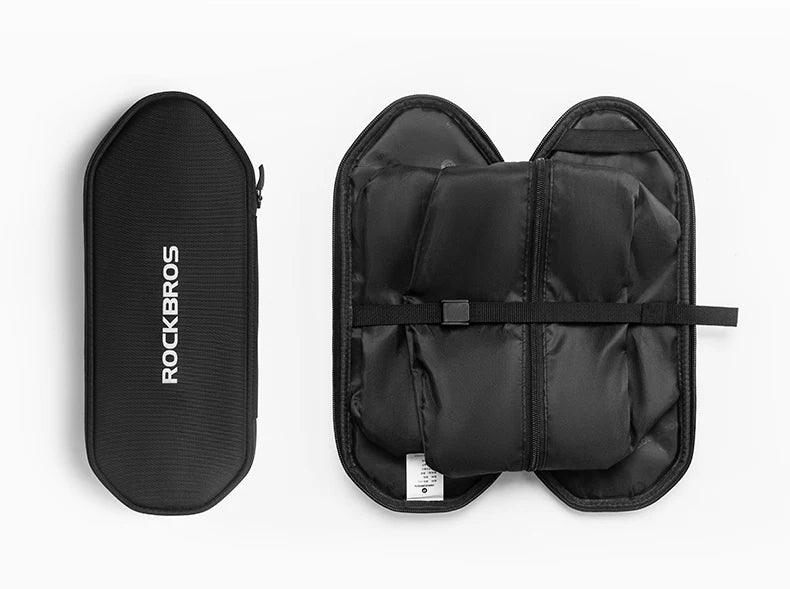

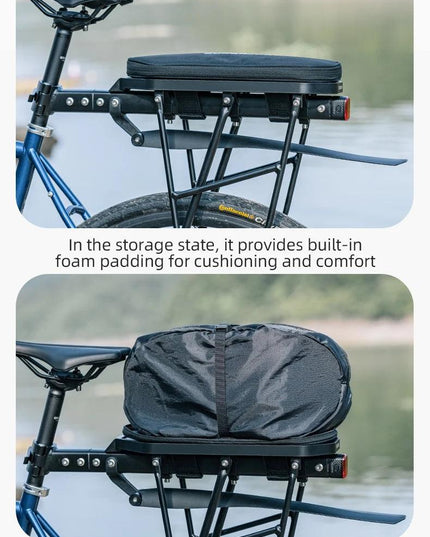

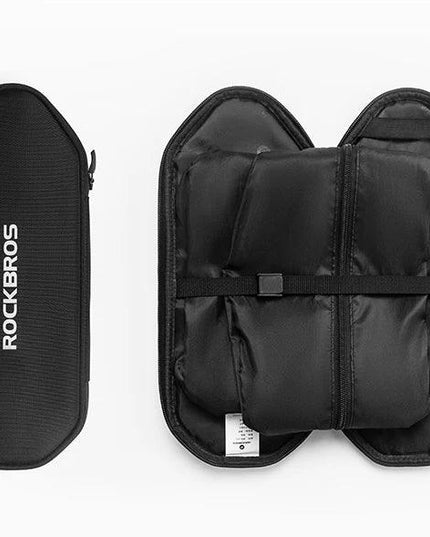

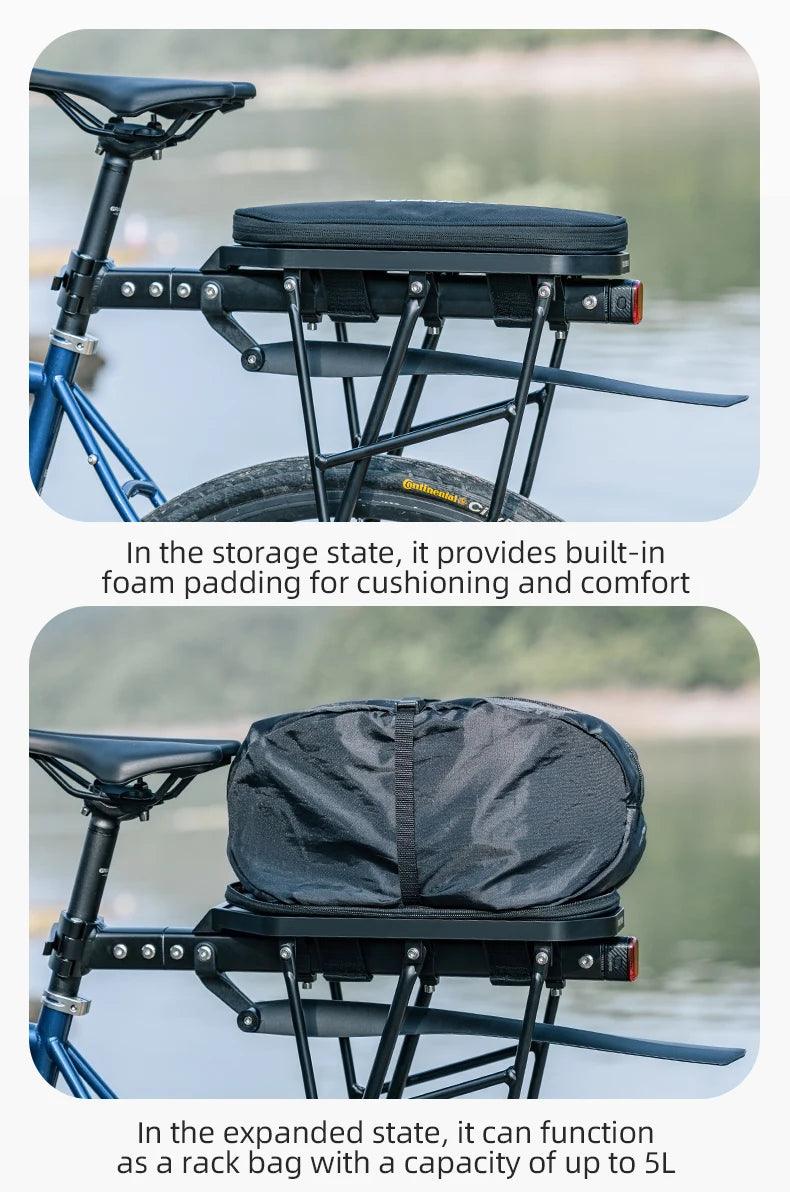

Dual-purpose seat bag
Optional expandable seat bag
Can be used as a cushion or storage bag, quick and easy to detach, versatile use

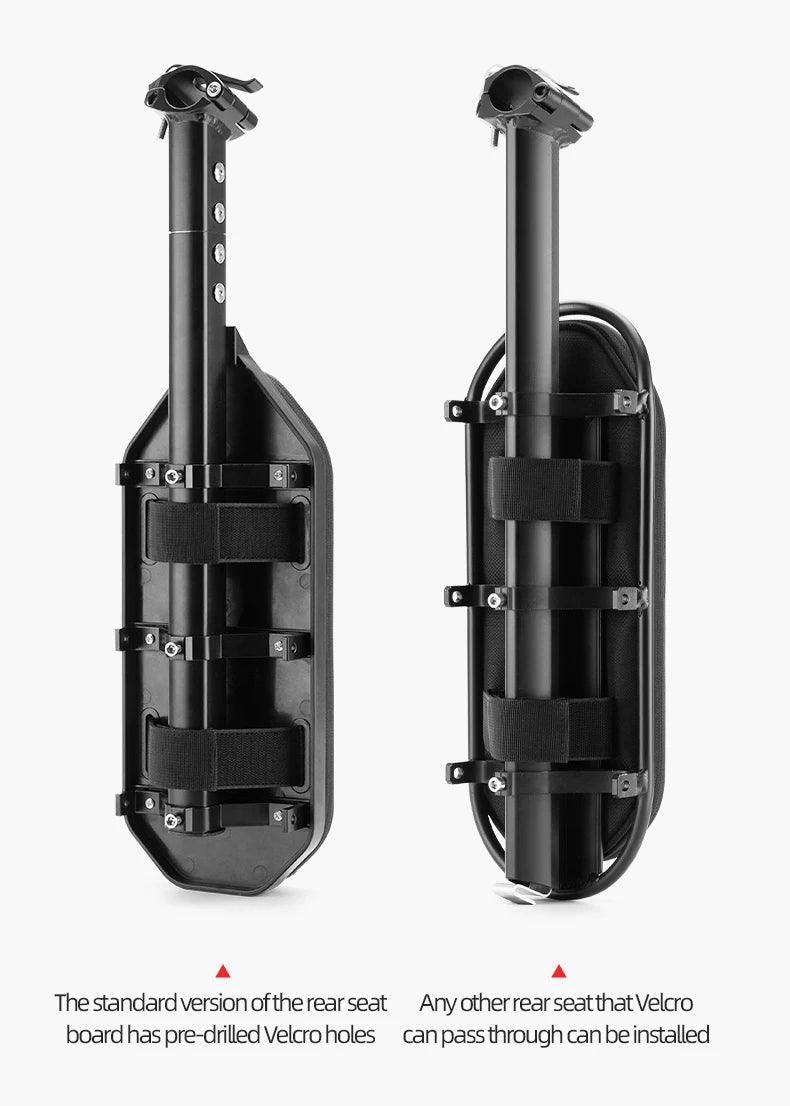

High applicability
Another rack can also be installed

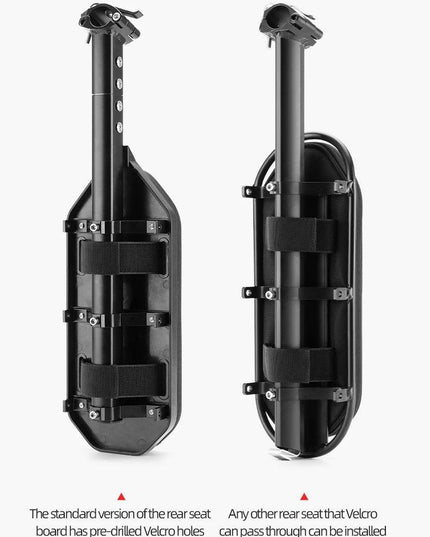

The seat bag is secured with Velcro, allowing for quick detachment and compatibility with most racks

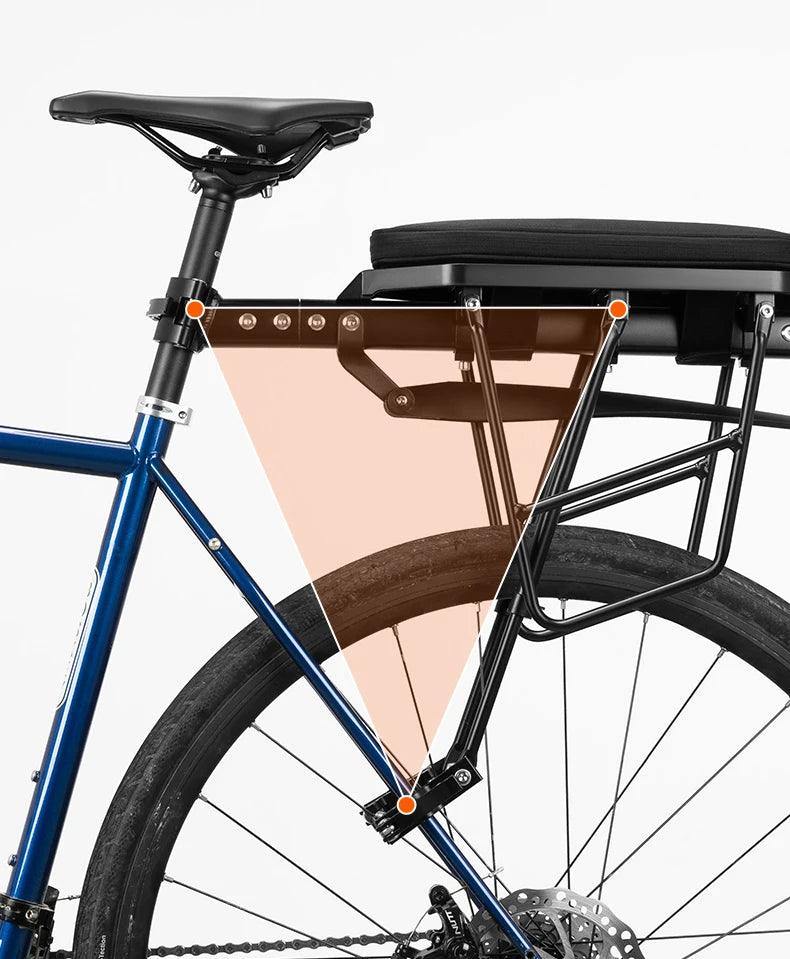

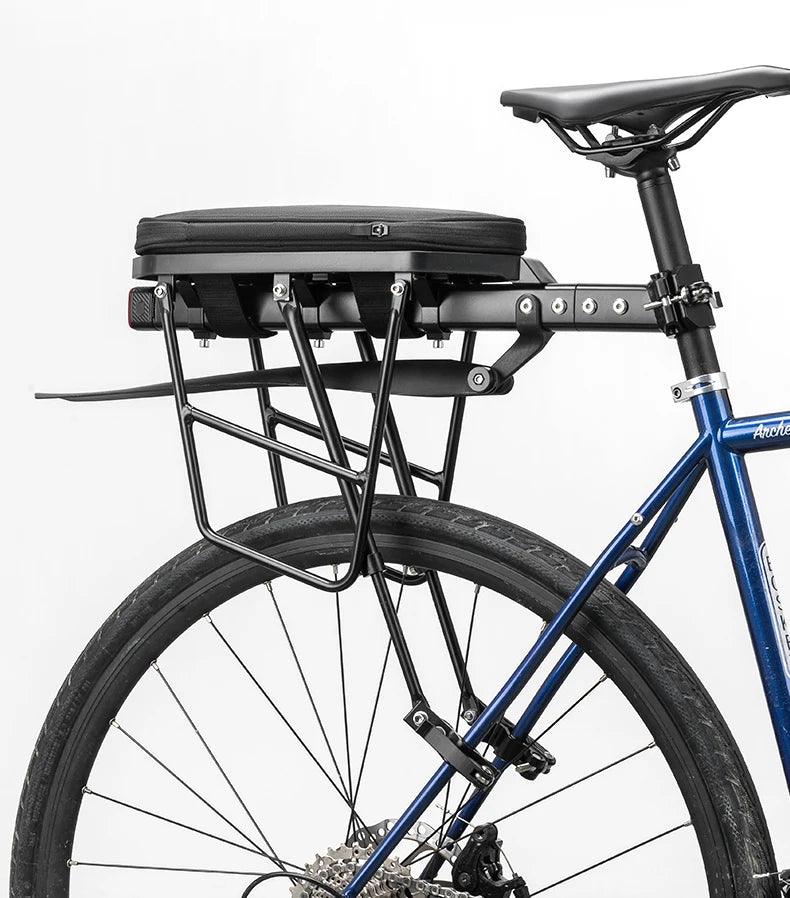

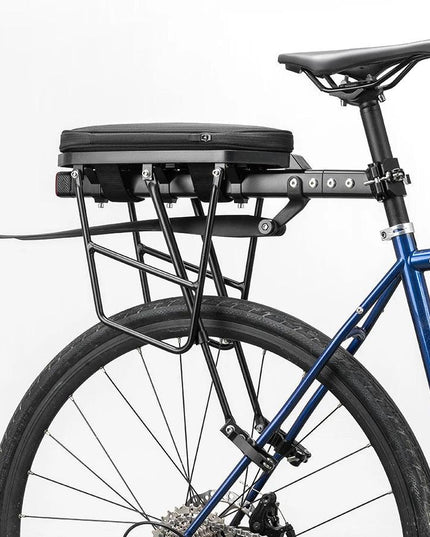

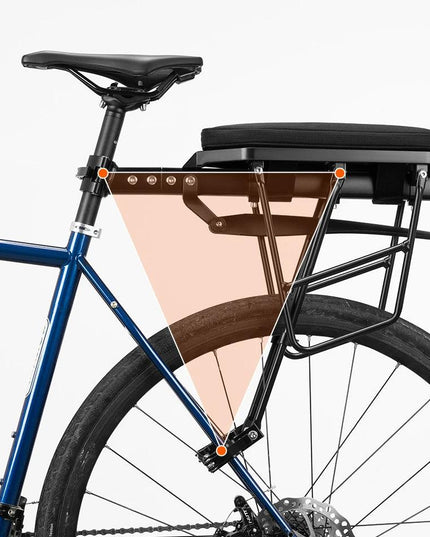

Stable structure
Triangle system for solid and firm installation
Triangle fixed support provides stability, durability, and minimizes deformation and wobbling

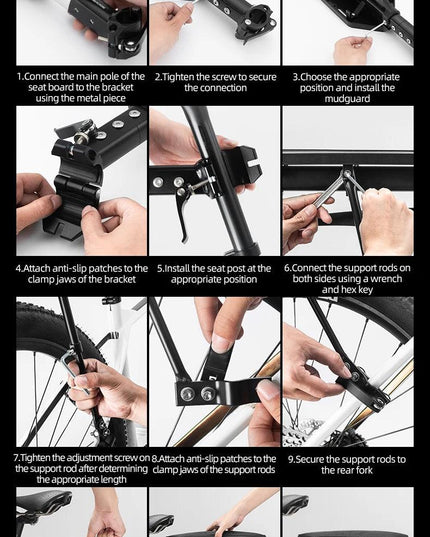

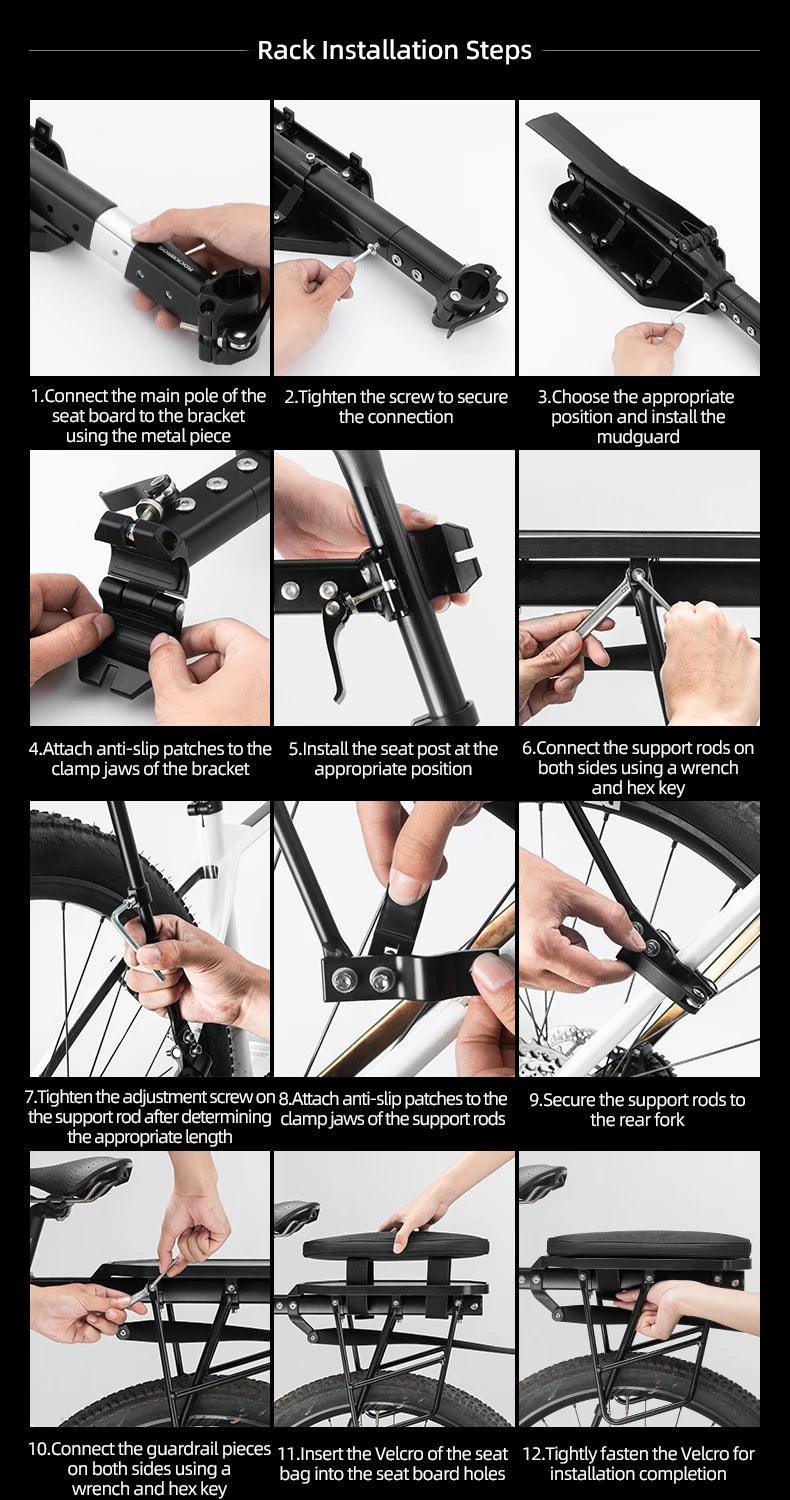

Connect the main pole of the seat board to the bracket using the metal piece
Tighten the screw to secure the connection
Choose the appropriate position and install the mudguard
Attach anti-slip patches to the clamp jaws of the bracket
Install the seat post at the appropriate position
Connect the support rods on both sides using a wrench and hex key
Tighten the adjustment screw on the support rod after determining the appropriate length
Attach anti-slip patches to the clamp jaws of the support rods
Secure the support rods to the rear fork
Connect the guardrail pieces on both sides using a wrench and hex key
Insert the Velcro of the seat bag into the seat board holes
Tightly fasten the Velcro for installation completion

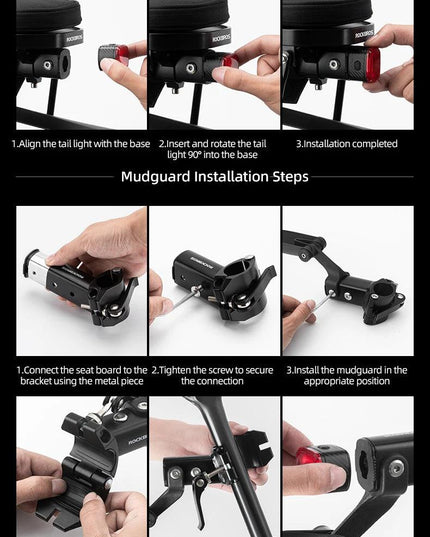

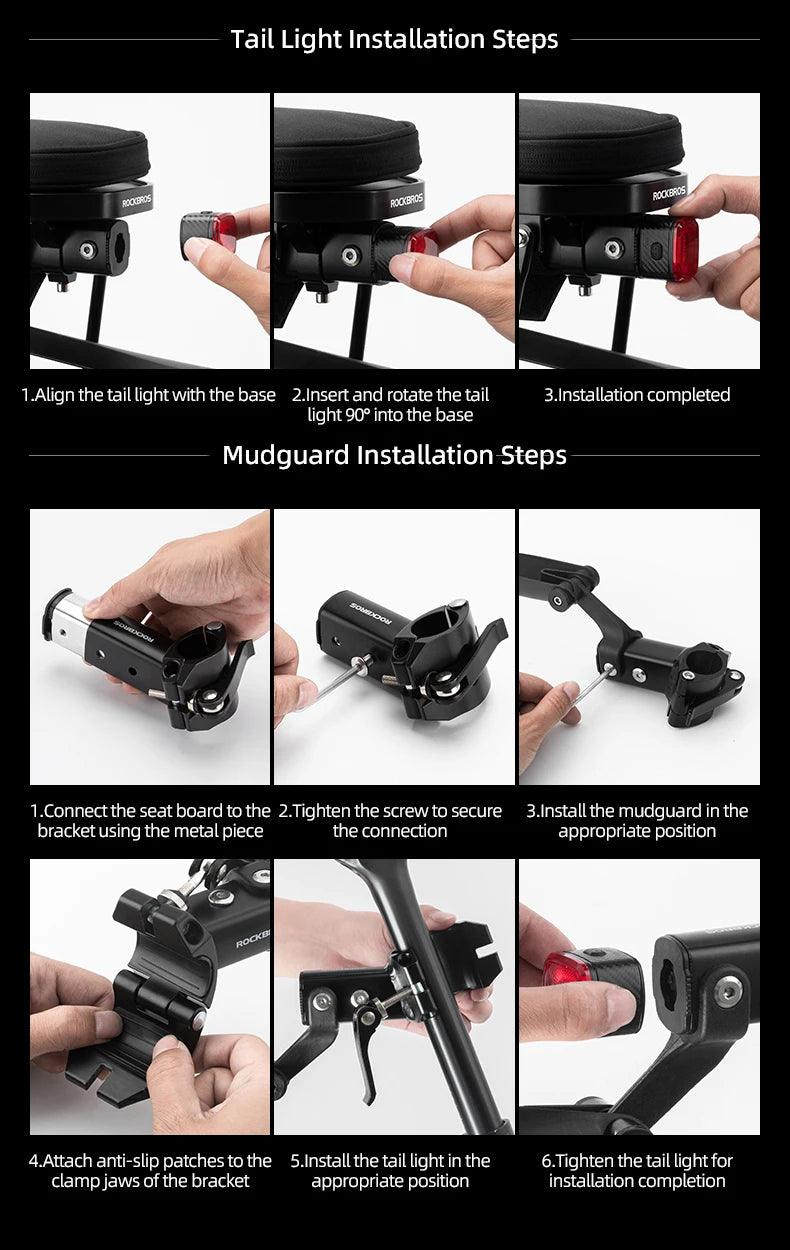

Tail Light Installation Steps
Align the tail light with the base
Insert and rotate the tail light 90° into the base
Mudguard Installation Steps
Connect the seat board to the bracket using the metal piece
Tighten the screw to secure the connection
Install the mudguard in the appropriate position
Attach anti-slip patches to the clamp jaws of the bracket
Install the tail light in the appropriate position
Tighten the tail light for installation completion

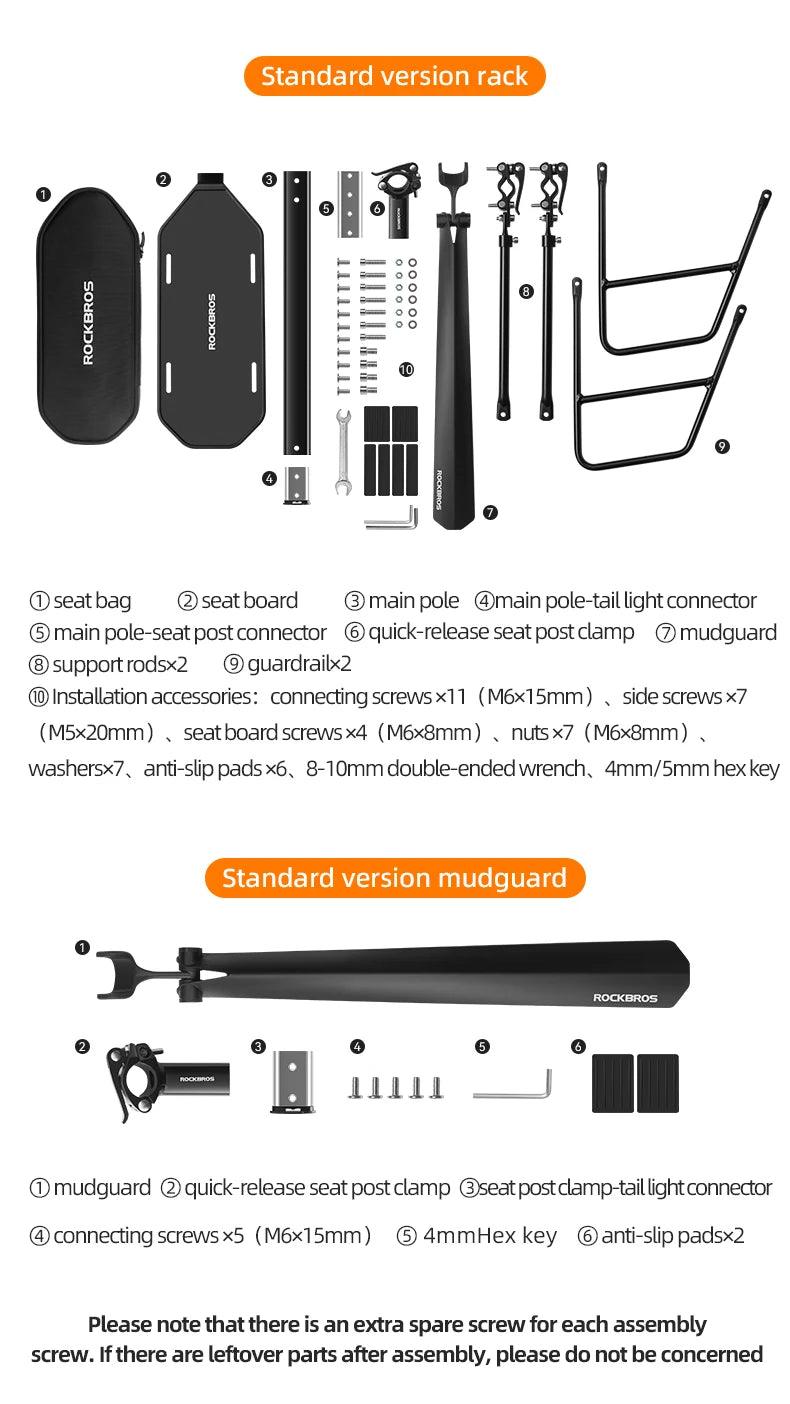

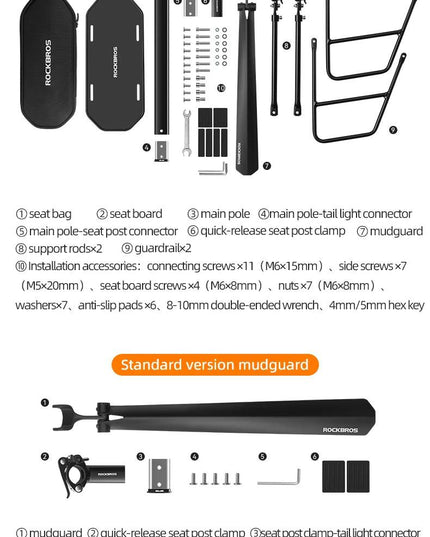

Accessories List

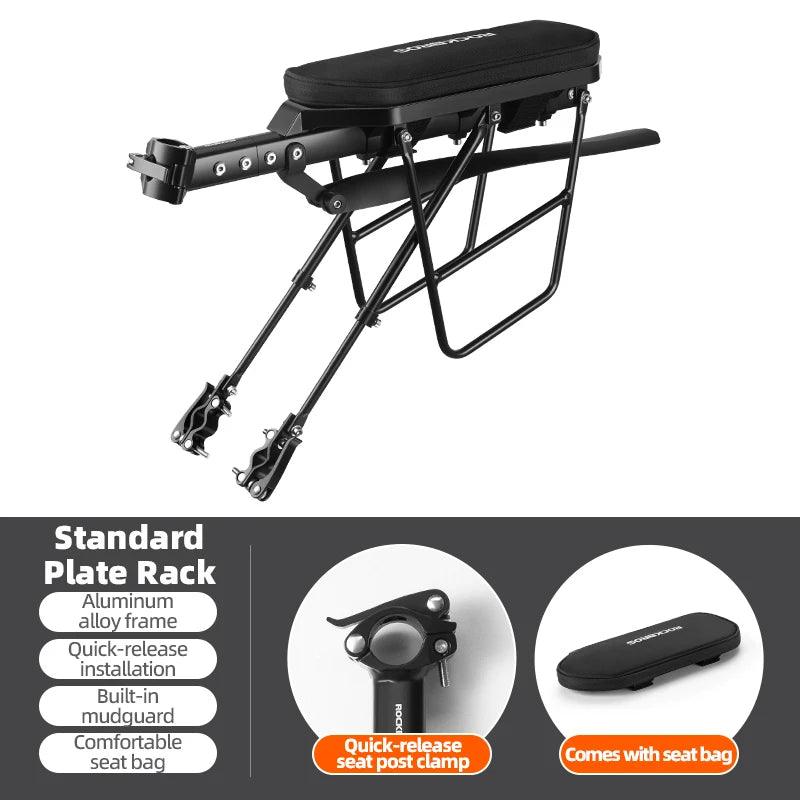

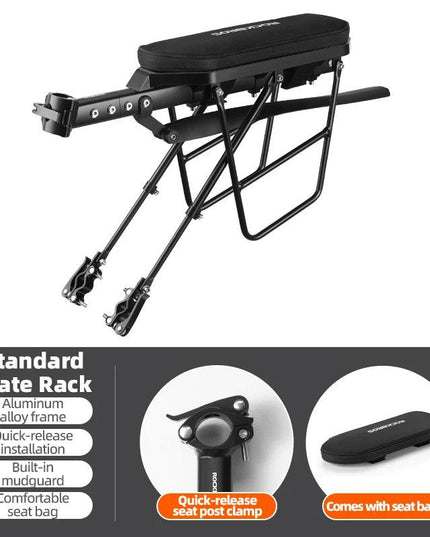

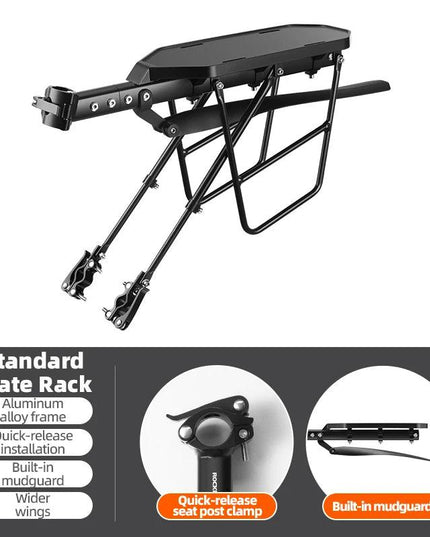

Standard version rack
Seat bag
Seat board
Main pole
Main pole-tail light connector
Main pole-seat post connector
Quick-release seat post clamp
Mudguard
Support rods
Guardrail
Installation accessories
Connecting screws
Side screws
Seat board screws
Nuts
Washers
Anti-slip pads
Double-ended wrench
Hex key

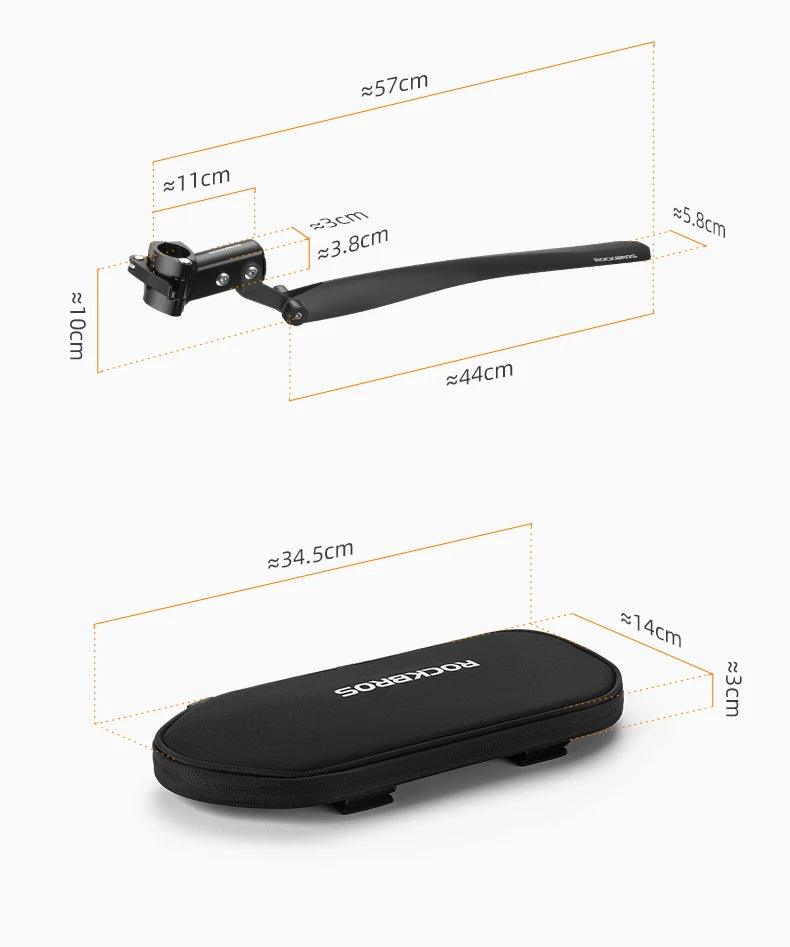

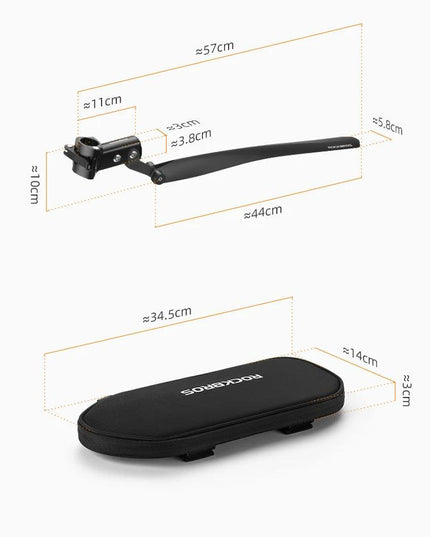

Standard version mudguard
Mudguard
Quick-release seat post clamp
Seat post clamp-tail light connector
Connecting screws
Hex key
Anti-slip pads
Please note that there is an extra spare screw for each assembly screw. If there are leftover parts after assembly, please do not be concerned
